RAM® Double Ball Large Rail Mount with Rear View Mirror
Part#:RAM-B-126-231Z-2 UPC:793442915048 Patented
Ball Icon B SIZE
Arm Icon MED ARM
2 889 kr
Incl. VAT
Related RAM® Components
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for B S...

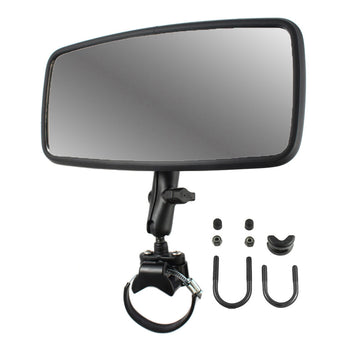

The RAM-B-126-231Z-2 consists of a Medium length B-size arm with our ATV/Side By Side Ball Base for rails up to 3.15" in Diameter as well as our Rear View Mirror.
hardware included

Assembly Hardware
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

U-Bolt: .5" - 1.25" diameter

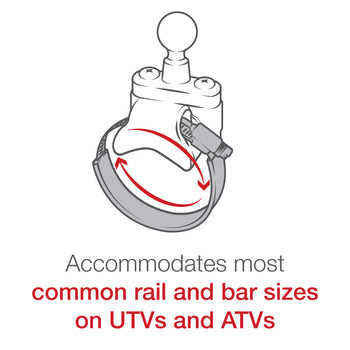

Strap Clamp: 1.57" - 3.15" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Box
Weight

1.451 kg

Consists of

RAM® Ball Adapter for Ski Mirror RAM-B-126CU
Ball Icon B SIZE
Arm Icon ARM
389 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr
RAM® ATV/Side By Side Ball Base for Rails up to 3.15" - Zinc RAM-B-231Z-2U
Ball Icon B SIZE
Arm Icon ARM
489 kr
