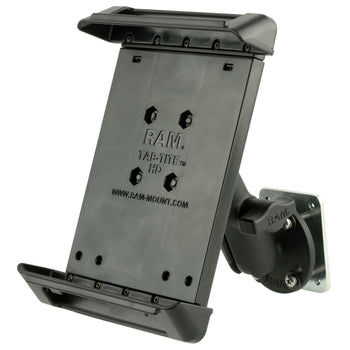

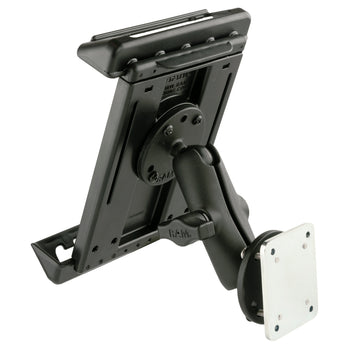

RAM® Tab-Tite™ Drill-Down Mount with Backing Plate for Small Tablets
Part#:RAM-B-138-TAB4-225B2U UPC:793442820175 Patented
Ball size B
Arm length Medium
1 399 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

The RAM-B-138-TAB4-225B2U consists of a 2.10" x 2.60" backer plate, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
holder dimensions

Height Range: 7.375" - 10"
Width Range: 4" - 5.31"
Depth Range: .13" - 1.06"
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.612 kg
