UNPKD RAM RAIL MOUNT W/ 1/4-20 MALE
Part#:RAM-B-149Z-A-237U UPC:793442934544 Patented
Ball Icon B SIZE
Arm Icon SHORT ARM
819 kr

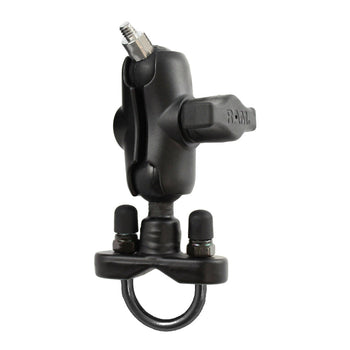

The RAM-B-149Z-A-237U consists of a zinc coated u-bolt base, short double socket arm and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
The RAM-B-149Z-A-237U consists of a zinc coated u-bolt base, short double socket arm and 1" diameter rubber ball, connected to a 1/4"-20 camera thread. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows for infinite articulation and optimum viewing angles. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

1.75"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.227 kg

that contain 1/4"-20 Female Threaded Hole
