RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger
Part#:RAM-B-149Z-A-PD7V-W2MU UPC:793442034466
Ball size B
Arm length Short
2 739 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

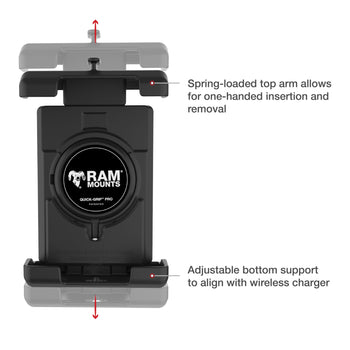

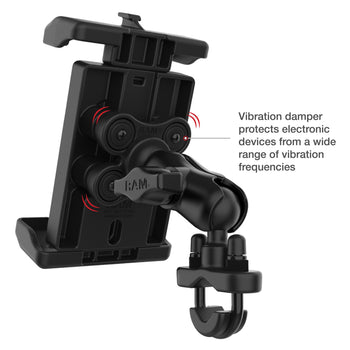

  • Spring-loaded holder with integrated vibration damper provides a secure hold for phones and handheld devices easily insert and remove your phone with one hand

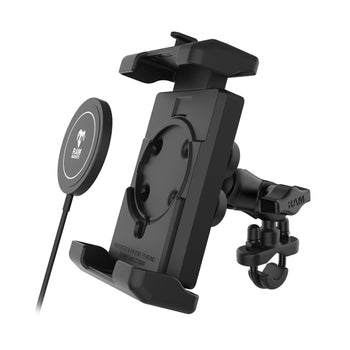

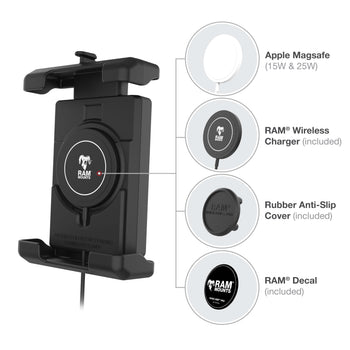

  • Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
  • Made of high-strength composite for durability and reliability Wireless charger features IP67 waterproof rating for withstanding water and dust in the most extreme conditions
  • Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length, B size RAM® double socket arm ball and socket technology allows for near-infinite adjustability
  • Mounting components backed by a lifetime warranty electronics backed by a 3-year warranty

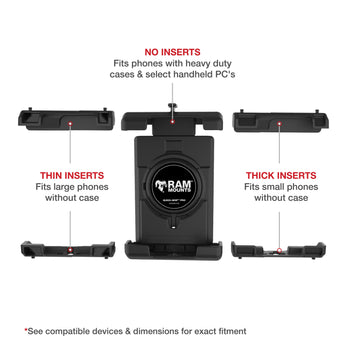

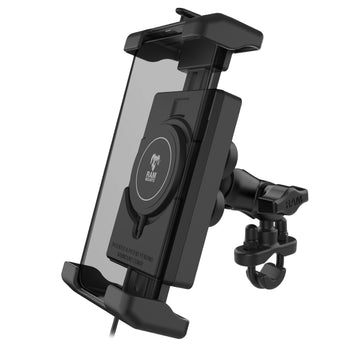

The RAM® Quick-Grip™ Pro XL Vibration Damping Phone Mount & Qi2 15W Charger (RAM-B-149Z-A-PD7V-W2MU) is an ideal handlebar solution featuring the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes a zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

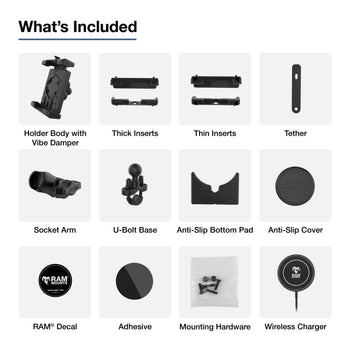

hardware included

Assembly Hardware
(1) RAM® Qi2 Wireless Charging Puck
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
holder dimensions

Height Range: 5.375" - 7"
Width Range: 2.75" - 3.5"
Max Depth: .75"
clamp range

.5" - 1.25" diameter
socket to socket length

1.75"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
power specifications

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
power output

BPP - 5W
EPP - 7.5W
MPP - 15W
output connector

USB Type-C Male with USB-A Adapter
output cable length

1 Meter
operating temperature

0°C to +40°C
storage temperature

-20°C to +80°C
regulatory

Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
certifications

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Additional information
The included wireless charger will support up to 8mm charging distance between puck and device.

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
