Retail Packed
RAM® Aqua Box® Pro 20 with U-Bolt Mount & Accessories
Part#:RAM-B-149Z-AQ7-2 UPC:793442936340
Ball size B
Arm length Medium
Availability Only a few left
1 649 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
Related RAM® Products
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® EZY-Mount™ Quick Release Adapter Kit
RAM® EZY-Mount™ Quick Release Adapter Kit

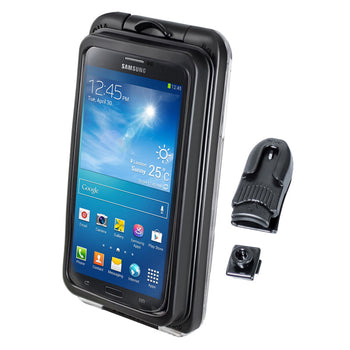

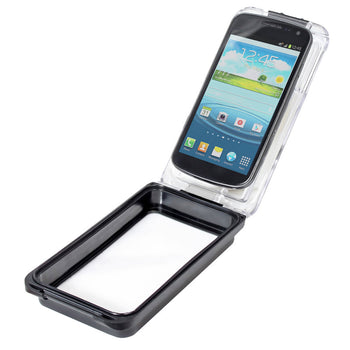

The RAM-B-149Z-AQ7-2 consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and AQUA BOX® Pro 20 case. The included cradle clip attaches directly to the mount, and serves as a quick release mechanism, allowing you to quickly insert or release the AQUA BOX® case. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5".
hardware included

Assembly Hardware
(1) Belt Clip Adapter
(1) Wrist Strap
(1) 1" x 5" Foam Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nyloc Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
internal dimensions

Width: 2.8"
Height: 5.38"
Depth: 0.55"
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Retail Packed
Weight

0.485 kg
