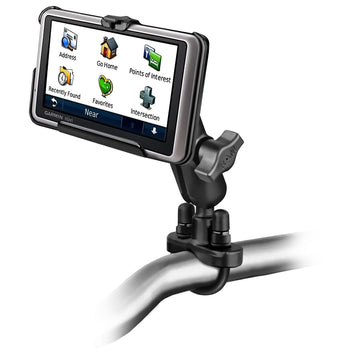

RAM® Handlebar U-Bolt Mount for Garmin nuvi 1300 & 2400 Series + More
Part#:RAM-B-149Z-GA34U UPC:793442929809 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 069 kr

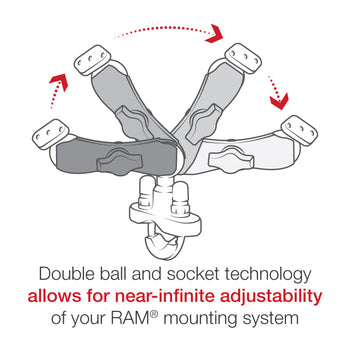

The RAM-B-149Z-GA34U consists of a zinc coated u-bolt base, double socket arm, diamond adapter base and custom high strength composite cradle for the Garmin nuvi. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the Garmin GPSMAP mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.308 kg

Består av

nuvi 1300

nuvi 1310T

nuvi 1350

nuvi 1350T

nuvi 1370T

nuvi 1390

nuvi 1390T

nuvi 2455LT

nuvi 2455LMT

nuvi 2475LT

nuvi 2495LMT
