RAM U-BOLT GARMIN ETREX 10 20 30
Part#:RAM-B-149Z-GA48 UPC:793442933271 Patented & Pats. Pend.
Ball Icon B SIZE
Arm Icon MED ARM
1 099 kr

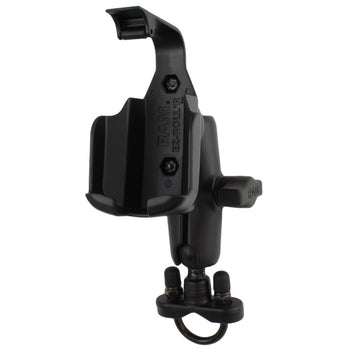

The RAM-B-149Z-GA48 consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin eTrex 10, 20 and 30. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle eTrex mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".

The RAM-B-149Z-GA48 consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin eTrex 10, 20 and 30. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle eTrex mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. Also included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.395 kg

eTrex 10

eTrex 20

eTrex 20x

eTrex 22x

eTrex 30

eTrex 30x

eTrex 32x
