RAM® Handlebar U-Bolt Double Ball Mount for Garmin eTrex Venture + More
Part#:RAM-B-149Z-GA5U UPC:793442149085 Patented
Ball size B
Arm length Medium
1 069 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® EZY-Mount™ Quick Release Adapter Kit
RAM® EZY-Mount™ Quick Release Adapter Kit

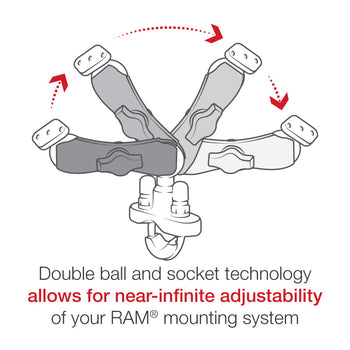

The RAM-B-149Z-GA5U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin eTrex NON-COLOR GPS. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle Garmin eTrex touch mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
hardware included

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nyloc Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.299 kg
