UNPK RAM RAIL U-BOLT MNT 7 TABLET RAM X-GRIP
Part#:RAM-B-149Z-UN8U UPC:793442940699 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 579 kr

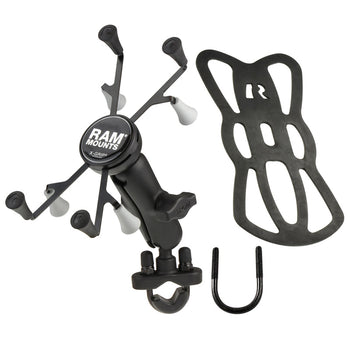

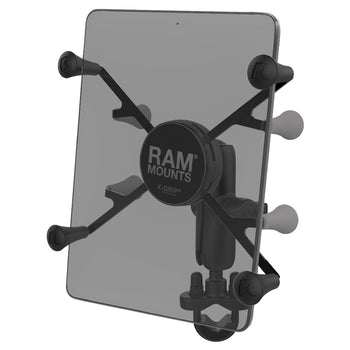

The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip® clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip® clamping cradle for 7"-8" tablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

holder dimensions

Width Range: 2.5" - 5.75"
Depth Range: .875" max

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite
Stainless steel

packaging type

Poly Bag

Weight

0.363 kg

Fire 7

Fire HD 8

Kindle

Kindle Oasis

Kindle Paperwhite

Kindle Voyage

iPad mini (1st Generation)

iPad mini 2

iPad mini 3

iPad mini 4

iPad mini 5

iPad mini 6

MeMO Pad 8

VivoTab 8

ZenPad 8.0

ZenPad C 7.0

ZenPad S 8.0

ZenPad Z8

ZenPad Z8s

Venue 7

Venue 7 (2014)

Venue 7 3741

Venue 8

Venue 8 (2014)

Venue 8 7840

Venue 8 Pro

Venue 8 Pro 5855

Nexus 7

Pro Tablet 408

Slate 7

MediaPad M3

MediaPad M3 Lite

MediaPad T1 7.0

MediaPad T1 8.0

MediaPad T3 7

MediaPad T3 8

Ideapad Miix 300

IdeaTab A1000

IdeaTab A2107

IdeaTab A3000

Tab 2 A7-10

Tab 2 A7-20

Tab 2 A7-30

Tab 2 A8

Tab 4 8

Tab 4 8 Plus

Tab 7 Essential

Tab A7-30

Tab A7-40

Tab A7-50

Tab A8-50

Tab M8 HD

Tab S8

Tab3 7

Tab3 8

Yoga Tablet 8

G Pad 7.0

G Pad F 8.0 (2nd Gen)

G Pad F2 8.0

G Pad II 8.0

G Pad X 8.0

G Pad X II 8.0

Shield Tablet

McNally OverDryve 7

McNally OverDryve 7 Pro

McNally OverDryve 7 RV

McNally OverDryve 7c

McNally OverDryve 8 Pro

McNally Road Explorer 7

McNally Road Explorer 70

McNally RV Tablet 70

McNally RVND 7

McNally TND 740

McNally TND Tablet 70

McNally TND Tablet 80

Galaxy Tab 2 7.0

Galaxy Tab 3 7.0

Galaxy Tab 3 8.0

Galaxy Tab 3 Lite 7.0

Galaxy Tab 4 7.0

Galaxy Tab 4 8.0

Galaxy Tab 7.7

Galaxy Tab A 7.0

Galaxy Tab A 7.0

Galaxy Tab A 8.0

Galaxy Tab A 8.0 (2017)

Galaxy Tab A 8.0 (2018)

Galaxy Tab A 8.0 (2019)

Galaxy Tab A 8.4

Galaxy Tab A7 Lite 8.7

Galaxy Tab Active2

Galaxy Tab E 7.0

Galaxy Tab E 8.0

Galaxy Tab Pro 8.4

Galaxy Tab S 8.4

Galaxy Tab S2 8.0

MatrixPad Z1 7"
