RAM® Handlebar U-Bolt Double Ball Mount - B Size Long
Part#:RAM-B-149ZU-C UPC:793442938467 Patented
Ball Icon B SIZE
Arm Icon LONG ARM
1 009 kr

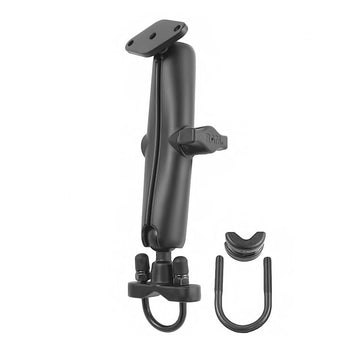

The RAM-B-149ZU-C consists of a zinc coated u-bolt base, LONG Length double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

5.31"

hole pattern

2-Hole AMPS: 1.912"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.386 kg

Består av

RAM® Double Socket Arm - B Size Long RAM-B-201U-C
Ball Icon B SIZE
Arm Icon LONG ARM
529 kr
RAM® Diamond Ball Base - B Size RAM-B-238U
Ball Icon B SIZE
Arm Icon ARM
179 kr
