RAM® Twist-Lock™ Suction Cup Mount with Action Camera Adapter - Short
Part#:RAM-B-166-A-GOP1U UPC:793442936630 Patented
Arm Length
Short Arm Medium Arm
Ball size B
849 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Black 3.5" Adhesive Plate for Suction Cups
RAM® Black 3.5" Adhesive Plate for Suct...
RAM® Portable Friction Dashboard Base
RAM® Portable Friction Dashboard Base
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for B S...

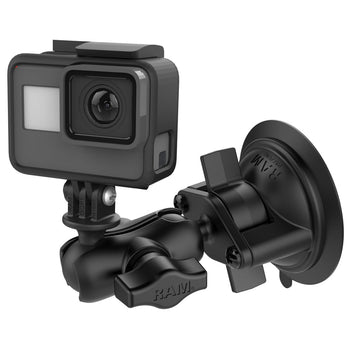

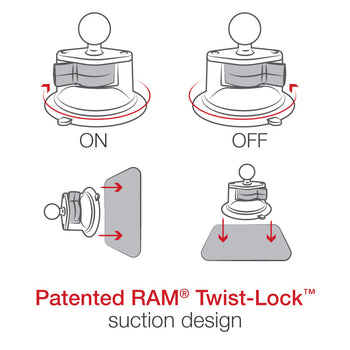

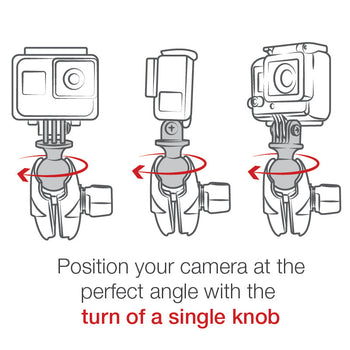

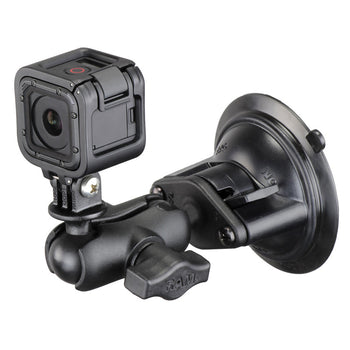

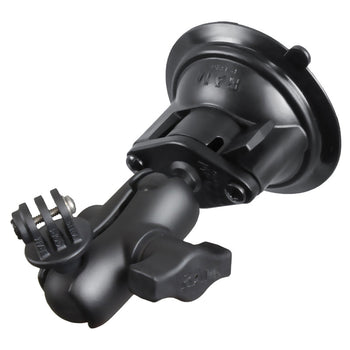

The RAM-B-166-A-GOP1U consists of a 3.3" diameter suction cup twist lock base, SHORT length double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including adhesive disks. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
hardware included

Assembly Hardware
suction size

3.3" Diameter
socket to socket length

1.75"
plate size

2.5" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.229 kg
Additional information
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
