RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger
Part#:RAM-B-166-AP-MAG-1-W2MU UPC:793442031724
Ball Icon B SIZE
Arm Icon MED ARM
1 979 kr
Incl. VAT
  • Wireless charging bundle built for windshields and other non-porous surfaces
  • 15W Qi2 fast charging for efficient power delivery
  • Includes RAM® Twist-Lock™ suction cup base and medium length B size RAM® double socket arm
  • Magsafe compatible precise magnetic alignment for iPhone 12 and later, and AirPods
  • Mounting components backs by a lifetime warranty electronics backed by a 3-year warranty
Related RAM® Components
RAM® Black 3.5" Adhesive Plate for Suction Cups
RAM® Black 3.5" Adhesive Plate for Suct...
RAM® Portable Friction Dashboard Base
RAM® Portable Friction Dashboard Base
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for B S...

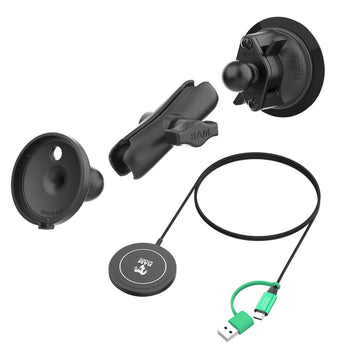

The RAM® Twist-Lock™ Suction Cup Mount with RAM® Qi2 15W Wireless Charger (RAM-B-166-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just secure the Twist-Lock™ with the flick of a lever for a no-tools installation, it’s that easy. This kit includes the RAM® Qi2 15W Wireless Charger, ball adapter, Twist-Lock™ suction cup base, and B size medium socket arm—designed to secure to any non-porous surface like windshields. With IP67 waterproof protection and a durable woven USB-C cord, you’ll get a reliable charge every time. Plus, harness your iPhone’s MagSafe® magnetic charging for a seamless, secure connection, no fumbling with cables.
hardware included

Assembly Hardware
(1) RAM® Qi2 Wireless Charging Puck
suction size

3.3" Diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
power specifications

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
power output

BPP - 5W
EPP - 7.5W
MPP - 15W
output connector

USB Type-C Male with USB-A Adapter
output cable length

1 Meter
operating temperature

0°C to +40°C
storage temperature

-20°C to +80°C
regulatory

Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
certifications

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Weight

0.0 kg
Additional Information
The included wireless charger will support up to 8mm charging distance between puck and device.

Consists of

RAM® Qi2 15W Wireless Charger RAM-GDS-CHARGE-W2M
649 kr
RAM® Ball Adapter for Apple MagSafe (2024+) RAP-B-202-AP-MAG-1U
Ball Icon B SIZE
Arm Icon ARM
219 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr
RAM® Twist-Lock™ Suction Cup Base with Ball RAM-B-224-1U
Ball Icon B SIZE
Arm Icon ARM
399 kr
