RAM® Twist-Lock™ Suction Cup Mount with Uniden Hardware

Part#:RAM-B-166-UND1U UPC:793442932663 Patented

RAM® Twist-Lock™ Suction Cup Mount with Uniden Hardware

Part#:RAM-B-166-UND1U UPC:793442932663 Patented

B SIZE

MED ARM

909 kr

Incl. VAT

Related RAM® Components

RAM® Black 3.5" Adhesive Plate for Suct...

RAM® Portable Friction Dashboard Base

RAM® Rotating Ball Adapter for Phone an...

RAM® Roto-View™ Adapter Plate

RAM® EZY-Mount™ Quick Release Adapter Kit

RAM® EZY-Mount™ Quick Release Female Ad...

Information

Information
Complete Your Solution
FAQ
Resources

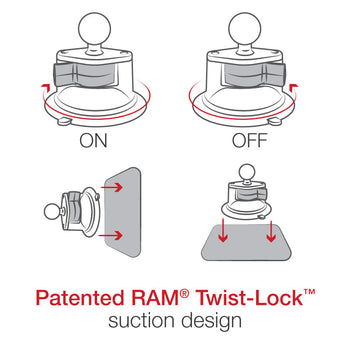

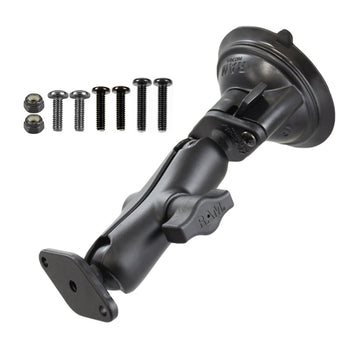

The RAM-B-166-UND1U consists of a medium length B-size arm with our 3.3" diameter twist lock suction cup and diamond base with hardware for Uniden devices.

hardware included	Assembly Hardware (2) #8-32 x 1/2" Machine Screws (2) #8-32 x 5/8" Machine Screws (2) #8-32 x .75" Screws (2) #8-32 Nylock Nuts
product dimensions	Overall Height: 6.69"
suction size	3.3" Diameter
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.29 kg
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

Consists of

RAM-B-224-1U:RAM-B-224-1U_1:RAM Twist-Lock™ Suction Cup Base with Ball

RAM-B-224-1U:RAM-B-224-1U_2:RAM Twist-Lock™ Suction Cup Base with Ball

RAM® Twist-Lock™ Suction Cup Base with Ball RAM-B-224-1U

B SIZE

ARM

399 kr

RAM-B-201U:RAM-B-201U_1:RAM Double Socket Arm - B Size Medium

RAM-B-201U:RAM-B-201U_2:RAM Double Socket Arm - B Size Medium

RAM® Double Socket Arm - B Size Medium RAM-B-201U

B SIZE

MED ARM

339 kr

RAM-B-238U:RAM-B-238U_1:RAM Diamond Ball Base - B Size

RAM-B-238U:RAM-B-238U_2:RAM Diamond Ball Base - B Size

RAM® Diamond Ball Base - B Size RAM-B-238U

B SIZE

ARM

169 kr

The RAM-B-166-UND1U consists of a medium length B-size arm with our 3.3" diameter twist lock suction cup and diamond base with hardware for Uniden devices.

hardware included	Assembly Hardware (2) #8-32 x 1/2" Machine Screws (2) #8-32 x 5/8" Machine Screws (2) #8-32 x .75" Screws (2) #8-32 Nylock Nuts
product dimensions	Overall Height: 6.69"
suction size	3.3" Diameter
socket to socket length	3"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.29 kg
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
