RAM® Brake/Clutch Reservoir Mount with LED Spotlight
Part#:RAM-B-174-152U UPC:793442910500 Patented
Ball Icon B SIZE
Arm Icon MED ARM
3 339 kr
Incl. VAT
Related RAM® Components
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for B S...

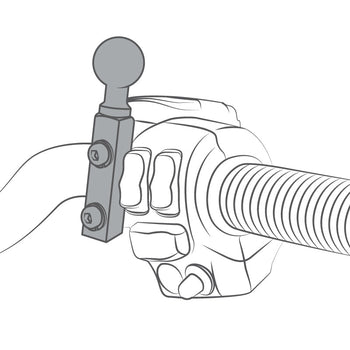

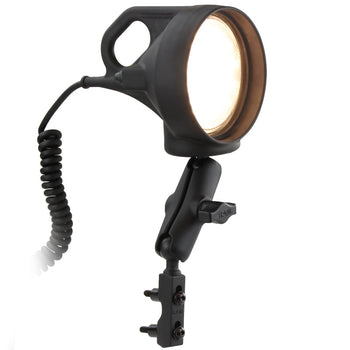

The RAM-B-174-152U consists of a 1" dia. ball rubber coated LED spotlight with brake/clutch reservoir and handlebar/rail mount. The base consists of a 1" diameter rubber ball, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Multiple pivot points, rubber ball and socket technology allows for almost infinite adjustment and perfect positioning angles.
hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
bulb specifications

PAR36
12 Volts DC
9 Watts
1900 Lumens
Sealed Beam
30-Degree Spot Light
Frosted Lens
4500K Color Temp
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
Rubber
packaging type

Poly Bag
Weight

0.231 kg
Additional Information
The RAM® Spotlight and bulb are general wear items and are not covered under warranty.

Consists of

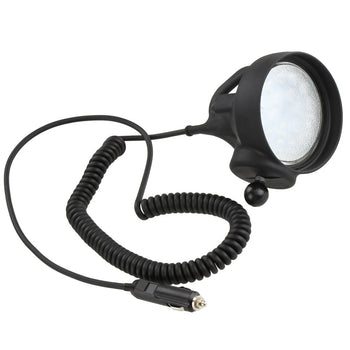

RAM® LED Spotlight with Ball RAM-B-152B
Ball Icon B SIZE
Arm Icon ARM
2 689 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr
RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base RAM-B-309-7U
Ball Icon B SIZE
Arm Icon ARM
459 kr
