RAM® Motorcycle Brake/Clutch Reservoir Mount for Apple iPhone 5 & 5s
Part#:RAM-B-174-AP11 UPC:793442943669 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 179 kr

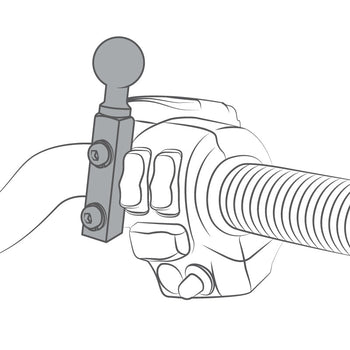

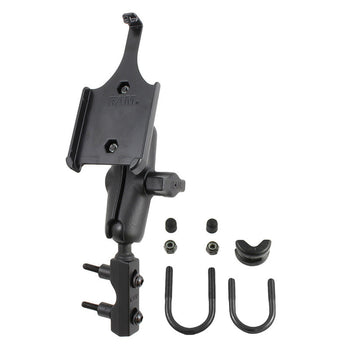

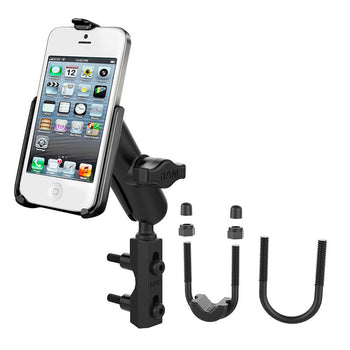

The RAM-B-174-AP11 consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm, diamond base adapter and high strength composite cradle. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Retail Bag
Weight

0.49 kg

Består av

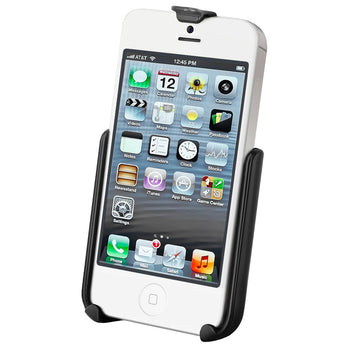

RAM® Form-Fit Cradle for Apple iPhone 5 & iPhone 5s RAM-HOL-AP11U
219 kr
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Medium RAM-B-174U
Ball Icon B SIZE
Arm Icon MED ARM
939 kr

iPhone 5

iPhone 5s
