RAM® Motorcycle Brake/Clutch Reservoir Mount for Garmin 12 Series
Part#:RAM-B-174-G1U UPC:793442913853 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 059 kr
Incl. VAT
Related RAM® Components
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Add-A-Ball™ Accessory Ball for B Size Socket Arms
RAM® Add-A-Ball™ Accessory Ball for B S...

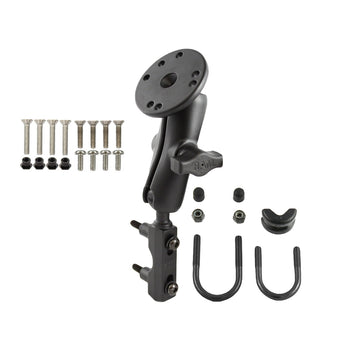

The RAM-B-174-G1U consists of a medium length B-size arm with our Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base, and our 2.5" diameter round plate with universal AMPS Hole pattern and hardware for Garmin Street Pilot III and GPSMAP 172-250.
hardware included

(4) #6-32 x 5/8" Machine Screws
(4) #6-32 x 7/8" Machine Screws
(4) #6-32 x 3/8" Machine Screws
(4) #6-32 Nut Inserts
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.313 kg

Consists of

RAM® Round Plate with Ball & Mounting Hardware for Garmin GPSMAP + More RAM-B-202-G1U
Ball Icon B SIZE
Arm Icon ARM
299 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
339 kr

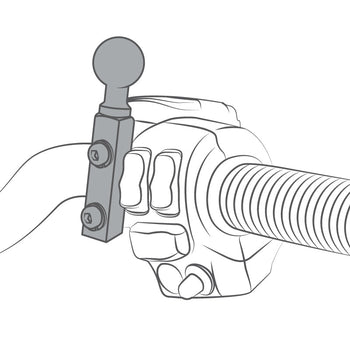

RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base RAM-B-309-7U
Ball Icon B SIZE
Arm Icon ARM
459 kr

StreetPilot III

GPSMAP 172-250
