RAM® Brake/Clutch Reservoir Mount for Garmin nuvi 550, zumo 220 + More
Part#:RAM-B-174-GA32U UPC:793442916625 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 169 kr

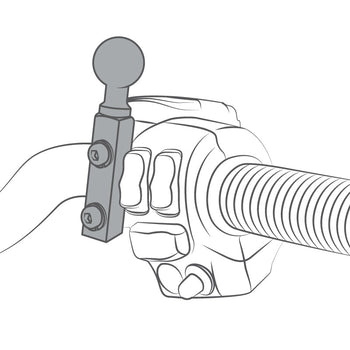

The RAM-B-174-GA32U consists of a double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, diamond adapter base and custom high strength composite cradle for the Garmin nuvi 500 series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle nuvi mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.
hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
socket to socket length

3"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.231 kg

Consists of

RAM® Form-Fit Cradle for Garmin nuvi 220, 500, 510, 550 & zumo 220 RAM-HOL-GA32U
279 kr
RAM® Motorcycle Brake/Clutch Reservoir Mount with Diamond Plate - Medium RAM-B-174U
Ball Icon B SIZE
Arm Icon MED ARM
949 kr

nuvi 220

nuvi 500

nuvi 510

nuvi 550

zumo 220
