RAM® Brake/Clutch Reservoir Mount with Garmin VIRB™ Camera Adapter
Part#:RAM-B-174-GA63U UPC:793442943683 Patented
Ball Icon B SIZE
Arm Icon MED ARM
959 kr

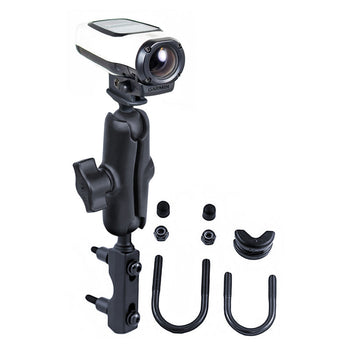

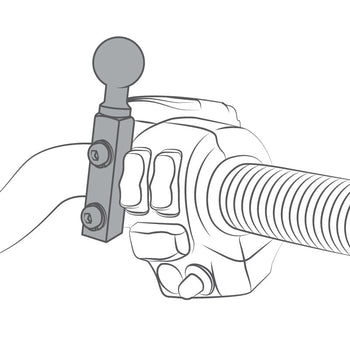

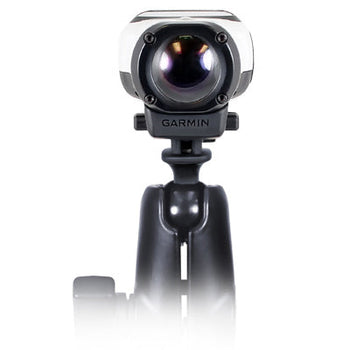

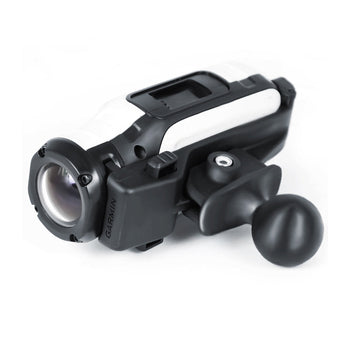

The RAM-B-174-GA63U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and Garmin VIRB™ camera adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.
hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.377 kg

Består av

RAM® Ball Adapter for Garmin VIRB™ RAM-B-202U-GA63
Ball Icon B SIZE
Arm Icon ARM
199 kr
RAM® Double Socket Arm - B Size Medium RAM-B-201U
Ball Icon B SIZE
Arm Icon MED ARM
369 kr
