UNPKD RAM GOLDWING GARMIN 2600 SERIES
Part#:RAM-B-174-GA9U UPC:793442901805 Patented
Ball Icon B SIZE
Arm Icon MED ARM
1 239 kr

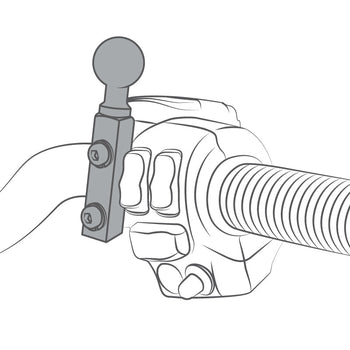

The RAM-B-174-GA9U consists of a medium length B-size arm with our Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base, and form fitting cradle for several Garmin device. A complete list of compatible devices can be found in the compatibility section below.
The RAM-B-174-GA9U consists of a medium length B-size arm with our Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base, and form fitting cradle for several Garmin device. A complete list of compatible devices can be found in the compatibility section below.

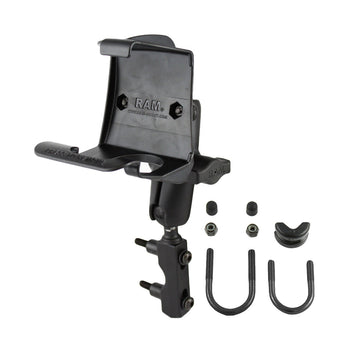

hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

0.231 kg

BMW Navigator II

BMW Navigator III

StreetPilot 2610

StreetPilot 2620

StreetPilot 2650

StreetPilot 2660

StreetPilot 2720

StreetPilot 2730

StreetPilot 2820
