RAM® Brake/Clutch Reservoir Mount with Universal Action Camera Adapter

Part#:RAM-B-174-GOP1U UPC:793442943706 Patented

RAM-B-174-GOP1U:RAM-B-174-GOP1U_2:RAM Brake/Clutch Reservoir Mount with Universal Action Camera Adapter

RAM-B-174-GOP1U:RAM-B-174-GOP1U_3:RAM Brake/Clutch Reservoir Mount with Universal Action Camera Adapter

RAM-B-174-GOP1U:RAM-B-174-GOP1U_4:RAM Brake/Clutch Reservoir Mount with Universal Action Camera Adapter

RAM® Brake/Clutch Reservoir Mount with Universal Action Camera Adapter

Part#:RAM-B-174-GOP1U UPC:793442943706 Patented

B SIZE

MED ARM

949 kr

Incl. VAT

Options

Related RAM® Components

RAM® Pin-Lock™ Security Knob for B Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

RAM® Add-A-Ball™ Accessory Ball for B S...

Information

Information
Compatibility
Complete Your Solution
FAQ
Resources

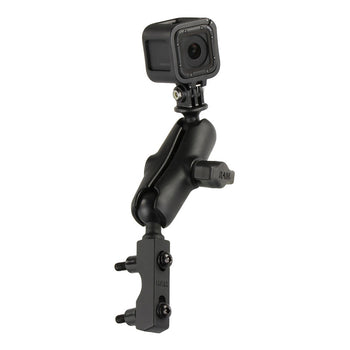

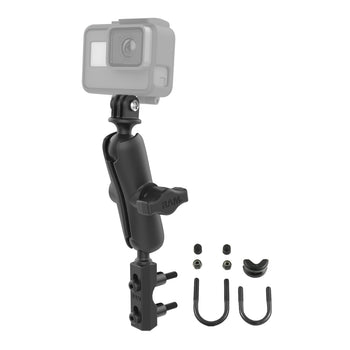

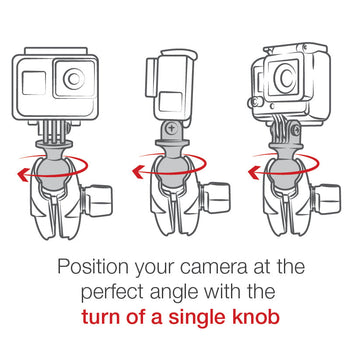

The RAM-B-174-GOP1U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The GoPro® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.

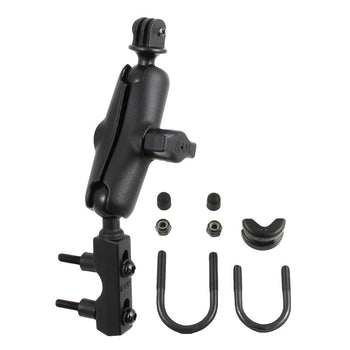

hardware included	Assembly Hardware (2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.326 kg

Consists of

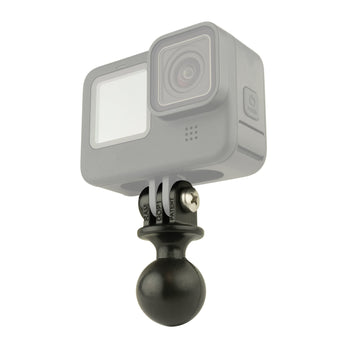

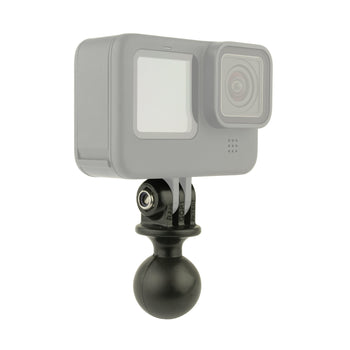

RAP-B-202U-GOP1:RAP-B-202U-GOP1_1:RAM Action Camera Universal Ball Adapter

RAP-B-202U-GOP1:RAP-B-202U-GOP1_2:RAM Action Camera Universal Ball Adapter

RAM® Action Camera Universal Ball Adapter RAP-B-202U-GOP1

B SIZE

ARM

219 kr

RAM-B-201U:RAM-B-201U_1:RAM Double Socket Arm - B Size Medium

RAM-B-201U:RAM-B-201U_2:RAM Double Socket Arm - B Size Medium

RAM® Double Socket Arm - B Size Medium RAM-B-201U

B SIZE

MED ARM

339 kr

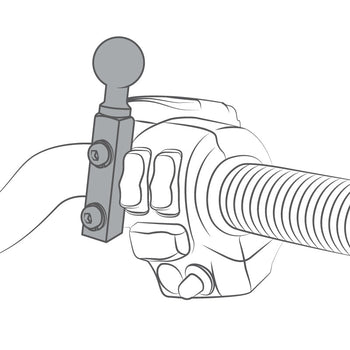

RAM-B-309-7U:RAM-B-309-7U_1:RAM Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base

RAM-B-309-7U:RAM-B-309-7U_2:RAM Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base

RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Ball Base RAM-B-309-7U

B SIZE

ARM

459 kr

hardware included	Assembly Hardware (2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.326 kg
