RAM® Chrome Motorcycle Brake/Clutch Reservoir Mount with Round Plate
Part#:RAM-B-174CH-202U UPC:793442947964 Patented
Ball Icon B SIZE
Arm Icon MED ARM
2 649 kr

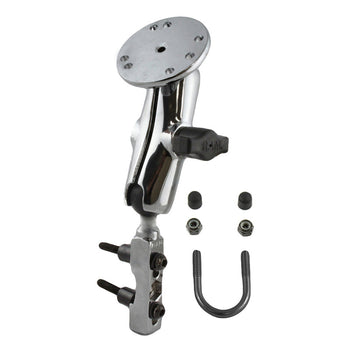

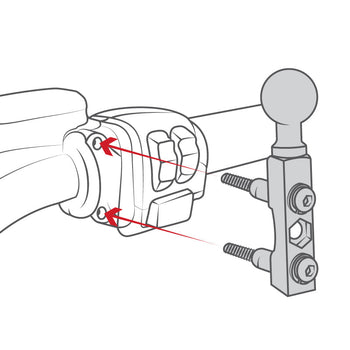

The RAM-B-174CH-202U consists of a chrome 1" diameter rubber ball, double socket arm, hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1" in diameter and 2.5" diameter round base that contains the universal AMPs hole pattern. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm this with a twist of the arm knob allows you to move the mount to your optimum viewing position.
hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.354 kg

Består av

RAM® Chrome Round Plate with Ball RAM-B-202CHU
Ball Icon B SIZE
Arm Icon ARM
539 kr

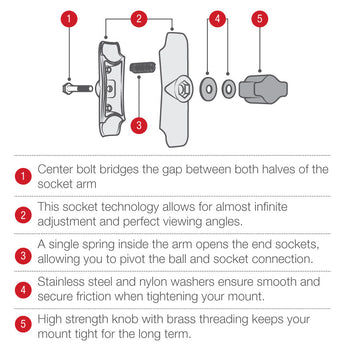

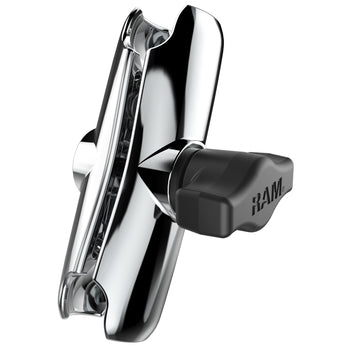

RAM® Chrome Double Socket Arm - B Size Medium RAM-B-201CHU
Ball Icon B SIZE
Arm Icon MED ARM
1 099 kr
