RAM® Glare Shield Clamp Mount for GARMIN 695 & 696
Part#:RAM-B-177-GA38U UPC:793442927799 Patented & Pats. Pend.
Ball size B
Arm length Short
1 479 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

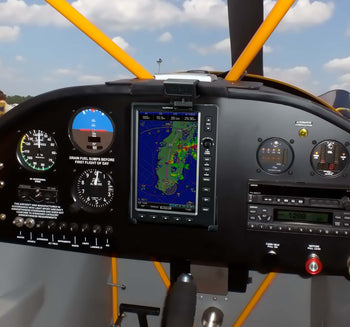

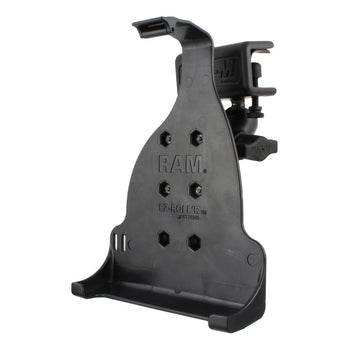

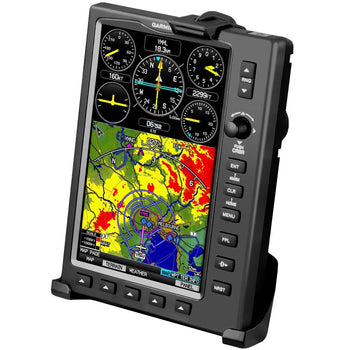

The RAM-B-177-GA38U consists of a glare shield clamp base, double socket arm and cradle for the Garmin GPSMAP 695/696. Simply locate the clamp on any clamping surface up to 5/8" thick and gently snug the nylon thumb screws. The double ball & socket system will provide perfect viewing angles to get the most from your Garmin GPSMAP. The RAM glare shield clamp with double ball & socket system is far and away the most discrete and clean way to mount most any compact electronic device to the glare shield of your aircraft.
hardware included

Assembly Hardware
(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad
clamp range

.625" max
socket to socket length

1.75"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.422 kg
