RAM® Diamond Ball Base - B Size
Part#:RAM-B-238 UPC:793442102387
Ball Size
B Size C Size
169 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Double Socket Arm - B Size Medium
Recommended add-on
RAM® Double Socket Arm - B Size Medium
339 kr
Details
  • Diamond plate features industry-standard AMPS hole pattern and measures 2.43" x 1.31"

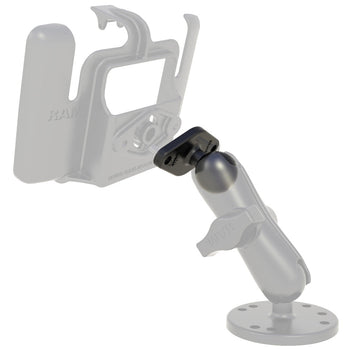

  • Compatible with several RAM® device holders and cradles ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

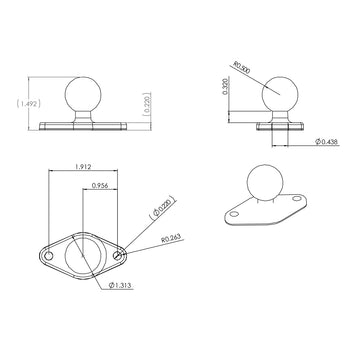

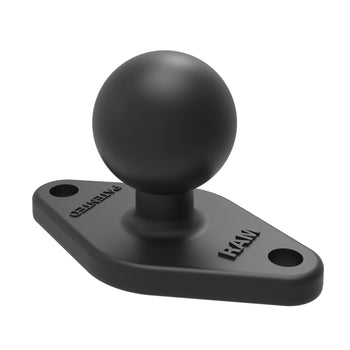

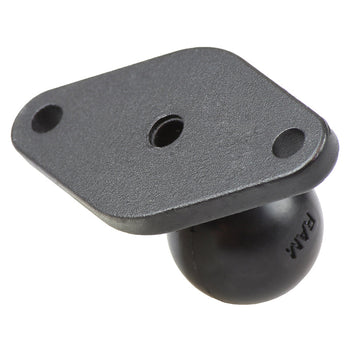

The RAM-B-238 ball base consists of a 1" B size rubber ball connected to a 2.43" x 1.31" diamond plate. The diamond plate features two holes that measure 1.912" from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM® device holders and cradles.
hole pattern

2-Hole AMPS: 1.912"
plate size

2.43" x 1.31"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Retail Packed
Weight

0.068 kg
