UNPKD RAM 88MM DIA BASE WITH B SIZED BALL BASE
Part#:RAM-B-238-MAG88U UPC:793442909443
Ball Icon B SIZE
Arm Icon ARM
1 229 kr
  • Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching B or C size RAM® 2-hole AMPS diamond ball bases
  • Includes B size (1") RAM® 2-hole AMPS pattern ball base for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and rubber for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

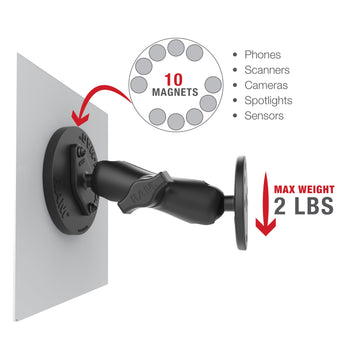

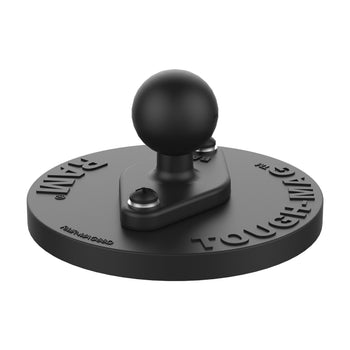

The RAM® Tough-Mag™ base consists of a B size 1" diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included B size diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any B size double socket arm and your desired holder to complete the magnetic mount.

The RAM® Tough-Mag™ base consists of a B size 1" diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included B size diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any B size double socket arm and your desired holder to complete the magnetic mount.
hole pattern

2-Hole AMPS: 1.912"

plate size

3.46" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
Rubber

packaging type

Poly Bag

Weight

0.213 kg
