RAM® Motorcycle Brake/Clutch Reservoir & Handlebar Double Ball Base
Part#:RAM-B-309-8U UPC:793442913983 Patented
Ball Icon B SIZE
Arm Icon ARM
649 kr
Incl. VAT

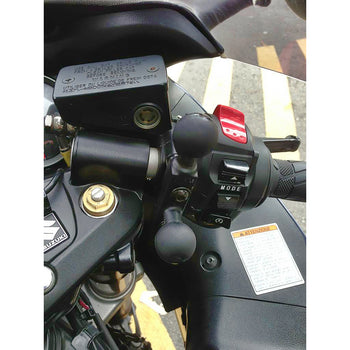

The RAM combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting. Mount to either your handlebar or brake/clutch, almost infinite adjustment and perfect viewing angles are providing in this kit. Standard or metric thread stainless steel bolts, provided in the kit. The zinc coated metal u-bolt accommodates rails in diameter from 0.75" to 1.25" in diameter.

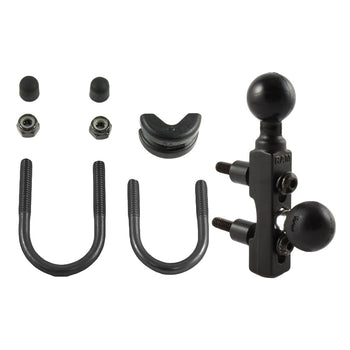

hardware included

Assembly Hardware
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range

.5" - 1.25" diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.15 kg

Consists of

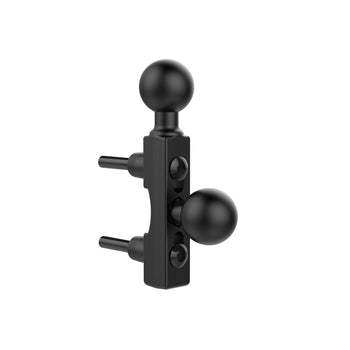

RAM® Motorcycle Brake/Clutch Reservoir Base with Add-On Ball RAM-B-309-2U
Ball Icon B SIZE
Arm Icon ARM
529 kr
RAM® Zinc Coated U-Bolt Hardware Pack RAM-HAR-SU251Z
129 kr
