UNPK RAM BAR MNT 3/4-1 SHORT CUP HLD
Part#:RAM-B-408-112-15-A-132U UPC:793442952647 Patented
Ball Icon B SIZE
Arm Icon SHORT ARM
1 349 kr

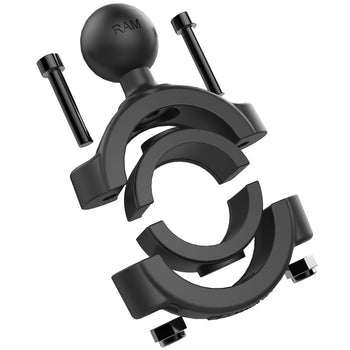

The RAM® Torque™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Included is a short double socket arm and a Level Cup™. Compatible with any cups, cans, bottles or mugs ranging from 2.5” to 3.5” diameter.
The RAM® Torque™ handlebar and rail mounting base has a 1” rubber ball and accommodates bars 1 1/8” to 1 1/2” in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock nuts to prevent loosening in high vibration environments. Included is a short double socket arm and a Level Cup™. Compatible with any cups, cans, bottles or mugs ranging from 2.5” to 3.5” diameter.
hardware included

(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(2) 1.12" Split Reducing Bushings
(2) 1.27" Split Reducing Bushings
(1) 5/32" Hex Key Wrench
(1) 127mm x 17mm Rubber Adhesive Strip
drink size

12-16 oz
clamp range

1.125" - 1.5" diameter
socket to socket length

1.75"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.399 kg
