RAM® Large Marine Electronics Ball Adapter - D Size
RAM® Large Marine Electronics Ball Adapter - D Size
D SIZE
ARM
1 109 kr

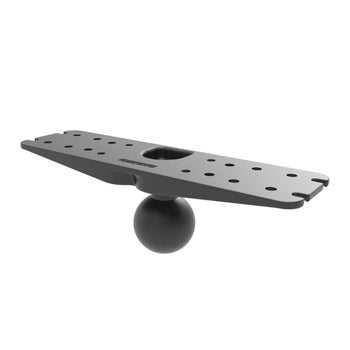

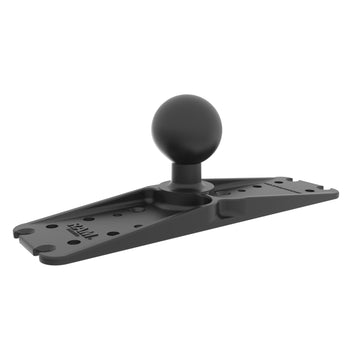

The RAM-D-111BU, universal mounting plate, consists of a 2.25" diameter rubber ball, connected at right angles to a flat 11 x 3" rectangular plate. The plate contains different combinations of pre-drilled holes which will match up to many electronic devices. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.
| hardware included |
(4) .312" x .187" Shoulder Washers |
| hole pattern |
See Drawing |
| plate size |
3" x 11" |
| ball size |
D Size (2.25") |
| weight capacity |
Standard Use: 6 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.612 kg |
| Additional Information |
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
|
Consists of
ECHOMAP Ultra 122sv
ECHOMAP Ultra 126sv
GPSMAP 1222/xsv Touch
GPSMAP 1242xsv/Touch
Fishfinders and GPS Chartplotters
HDS Carbon 9
HDS Carbon 12
Elite-9 CHIRP
Elite-9 Ti
Elite-9 Ti²
Elite-12 Ti
Elite-12 Ti²
Fishfinders and GPS Chartplotters
800 & 900 Series
Fishfinders and GPS Chartplotters
