Build your mount
RAM® Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series
RAM® Drill-Down Ball Mount for Humminbird Helix 8-10 & XPLORE Series
D SIZE
SHORT ARM
2 349 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
- Complete flat surface, drill-down mounting solution for the Humminbird XPLORE Series, and Helix 8, 9, & 10 RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Includes 3.68" round base with D size 2.25" rubber ball, short length D size double socket arm, and a 1.5" x 4.5" rectangle base with D size 2.25" rubber ball that connects to your Humminbird Helix marine electronic
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

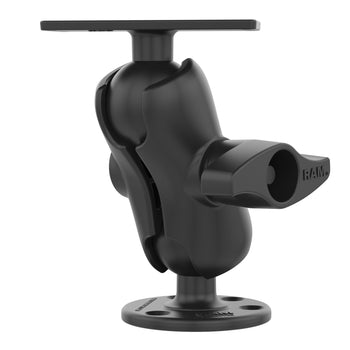

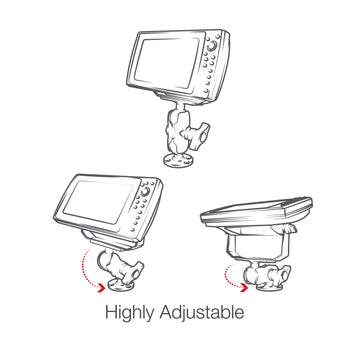

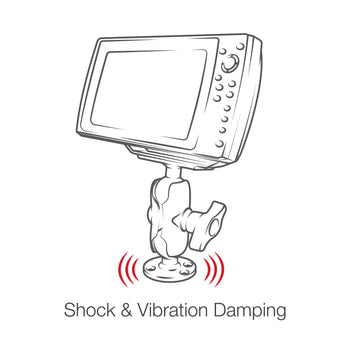

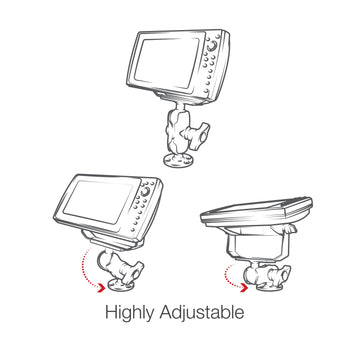

This powder-coated, marine-grade aluminum Humminbird mount consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with Humminbird 8, 9 & 10 models. The rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle.

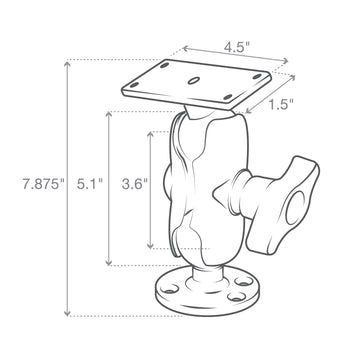

| product dimensions |
Overall Height: 7.875" |
| socket to socket length |
3.6" |
| hole pattern |
Rectangular Plate: 1.5" x 4.5" |
| plate size |
Top Plate: 2" x 5" |
| ball size |
D Size (2.25") |
| weight capacity |
Standard Use: 6 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
1.361 kg |
| Additional Information |
For Humminbird devices greater than 10" including Helix, Solix & Apex, the version of this mount with RAM® Hi-Torq™ wrench is recommended for extra support. See RAM-D-202-25-C-202-KNOB9HU.
|
Consists of
Helix 8
Helix 9
Helix 10
Solix 10
XPLORE 9
XPLORE 10
XPLORE 12
