RAM® Temp-Right™ Dock Heating Module for GDS® Tough-Dock™
Part#:RAM-DOCK-HEATER1-BU UPC:793442016189 Patented & Pats. Pend.
3 509 kr
  • Heater module designed specifically for the GDS® Tough-Dock™ tablet docks
  • Regulates the tablet's operating temperature by generating forced heat to the back of the tablet
  • Integrated thermistor detects temperature and automatically activates the heater when temps reach below approximately 32-degrees fahrenheit
  • Built-in safety plunger deactivates the heater when the device is undocked
  • Backed by a 3-year warranty

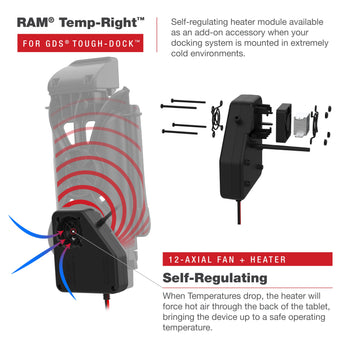

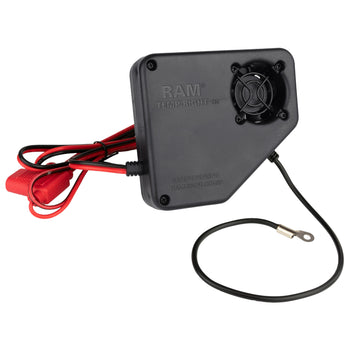

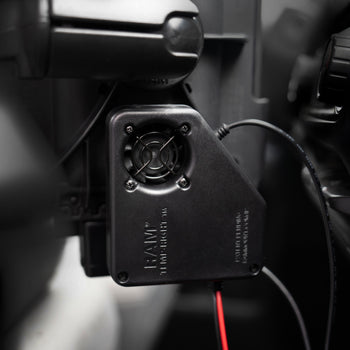

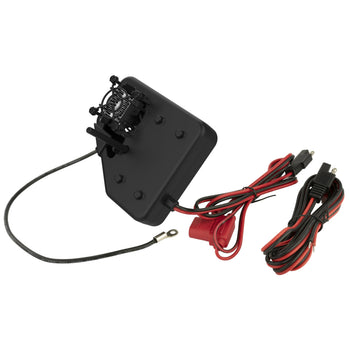

The RAM® Temp-Right™ Dock Heating Module for GDS® Tough-Dock™ tablet docks (RAM-DOCK-HEATER1-BU) is a self-regulating heater module available as an add-on accessory when your tablet docking system is mounted in extremely cold environments. When installed to the dock and connected to a power source, the integrated thermistor detects when temperatures reach below 32-degrees fahrenheit, automatically activates the heater, and forces hot air throughout the back of the tablet via a 12-VDC Axial cooling fan. The heater will bring the device up to safe operating temperatures and then automatically turns off. In addition, a built-in safety plunger prevents the heater from activating when the device is undocked. Once the device is docked, it presses on the safety plunger which will activate the functionalities of the Temp-Right™. This add-on accessory was built to keep devices operable specifically in cold environments for transportation & logistics and cold storage warehousing use cases.
hardware included

Assembly Hardware

materials

High strength composite
Stainless Steel

packaging type

Poly Bag

input voltage

11-16VDC

output voltage

12V @ 7.5A

power output

85W

output current

7.5A max

input cable length

1 Meter

operating temperature

-30°C to +70°C

storage temperature

-40°C to +85°C

regulatory

WEEE and RoHS Compliant

Warranty

3 year warranty

Weight

0.322 kg

Additional Information
24-60VDC Input (12VDC Output) Charger is required for this module. See RAM-GDS-CHARGE-V16U
