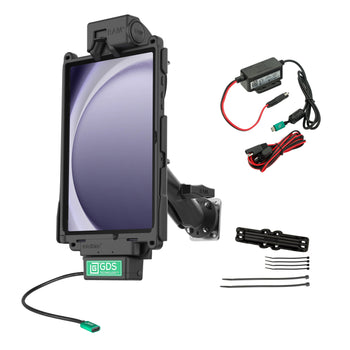

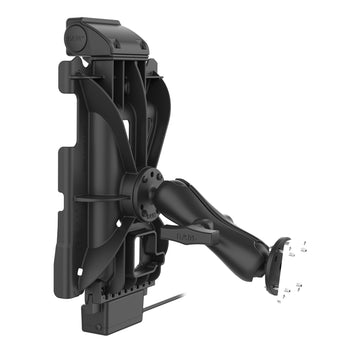

GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+
Part#:RAM-GDS-101B2-SAM88CP-V7CU UPC:793442021596
Ball Icon C SIZE
Arm Icon MED ARM
5 649 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions

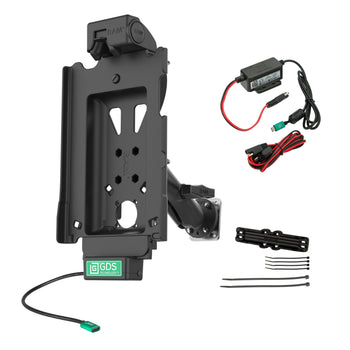

  • Bundle includes non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A9+, hardwire charger with USB-C connector, double ball mount with C size (1.5") ball, backing plate adapter and cable clamp
  • Dock features GDS® Technology™ for charging capabilities uses USB-C port to connect to power
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty
The GDS® Tough-Dock™ Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-101B2-SAM88CP-V7CU) is ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A9+. This bundle includes a non-locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A9+, hardwire charger with USB Type-C connector, C Size double ball mount with medium arm, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5.42-9VDC
output current

2.5A max
input connector

Bare Wire
input cable length

2.5 Meters
output connector

USB Type-C Male
output cable length

1 Meter
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
Warranty

3 year warranty
Weight

1.746 kg

Consists of

IntelliSkin® Next Gen for Samsung Tab A9+ RAM-GDS-SKIN-SAM88-NG
1 429 kr
GDS® Tough-Dock™ for Samsung Tab A9+ RAM-GDS-DOCK-SAM88CPU
2 349 kr

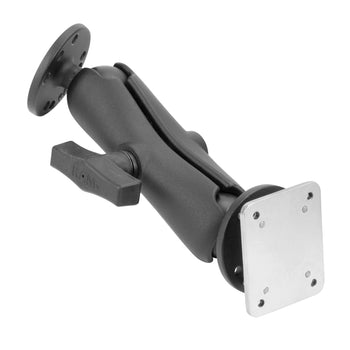

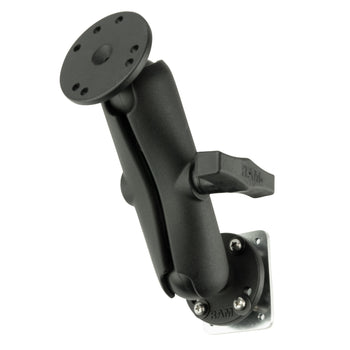

RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Medium RAM-101-225B2U
Ball Icon C SIZE
Arm Icon MED ARM
1 279 kr
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C RAM-GDS-CHARGE-V7CU
859 kr

Galaxy Tab A9+
