GDS® Tough-Dock™ Locking Vehicle Bundle for Samsung Tab A7 Lite 8.7"
Part#:RAM-GDS-101LB2-SAM80CP-V7CU UPC:793442018343
Ball Icon C SIZE
Arm Icon SHORT ARM
5 909 kr
Incl. VAT

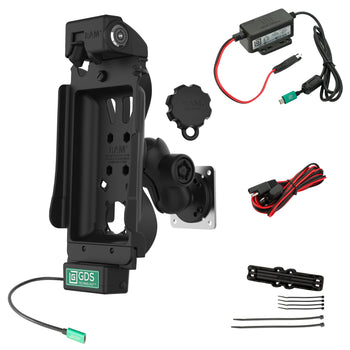

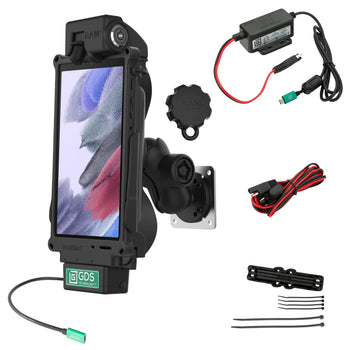

  • Bundle includes locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB-C connector, low-profile double ball mount with C size (1.5") ball and RAM® Pin-Lock™ Knob, backing plate adapter and cable clamp
  • Dock features GDS® Technology™ for charging capabilities uses USB-C port to connect to power
  • RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty
Related RAM® Components
GDS® Roto-Mag™ 3-in-1 Accessory with Grip Handle, Hand Strap & Magnets
GDS® Roto-Mag™ 3-in-1 Accessory with Gr...
GDS® Hand-Stand™ Hand Strap and Kickstand for Tablets
GDS® Hand-Stand™ Hand Strap and Kicksta...
GDS® Shoulder Strap Accessory
GDS® Shoulder Strap Accessory
GDS® Shoulder Strap Accessory with Breakaway Feature
GDS® Shoulder Strap Accessory with Brea...
GDS® Hand-Stand™ Magnetic Hand Strap and Kickstand for Tablets
GDS® Hand-Stand™ Magnetic Hand Strap an...
GDS® Hand-Stand™ with Risers for Vehicle Docks
GDS® Hand-Stand™ with Risers for Vehicl...

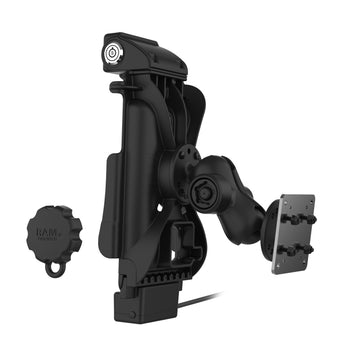

Ideal for transportation and large fleet vehicles, this bundle is all you need to pair with your Samsung Tab A7 Lite 8.7". This bundle includes a locking GDS® Tough-Dock™, IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7", hardwire charger with USB Type-C connector, C Size double ball mount paired with the short arm with RAM® Pin-Lock™ 5-Pin Security Knob, backing plate adapter, and cable clamp. This bundle is ELD compliant, providing a turnkey solution for your fleet. Always Protected. Always Connected.®
hardware included

Assembly Hardware
(2) Dock Keys
(1) Knob Key
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(1) Cable Clamp
(1) Vehicle Hardwire Charger
socket to socket length

2.5"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
ball size

C Size (1.5")
materials

Steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
output voltage

5V - 20V @ 3A
power output

60W
input connector

Female USB Type-C
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

150mm
operating temperature

-20°C to +70°C
storage temperature

-40°C to +85°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
E-Mark Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
Warranty

3 year warranty
Weight

1.632 kg

Consists of

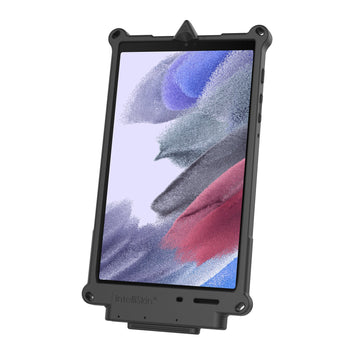

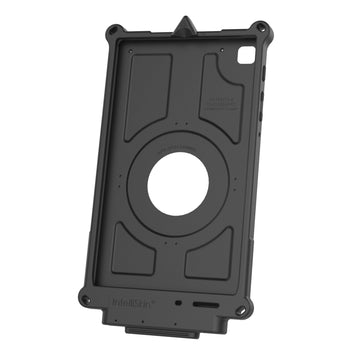

IntelliSkin® Next Gen for Samsung Tab A7 Lite 8.7” RAM-GDS-SKIN-SAM80-NG
1 119 kr

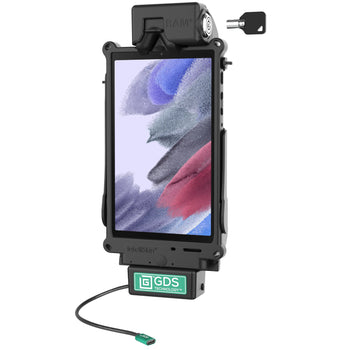

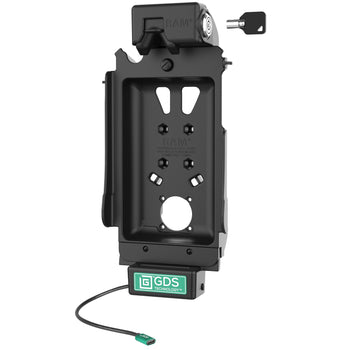

Locking GDS® Tough-Dock™ for Samsung Tab A11 & Tab A9 RAM-GDS-DOCKL-SAM80CPU
2 769 kr
RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
319 kr

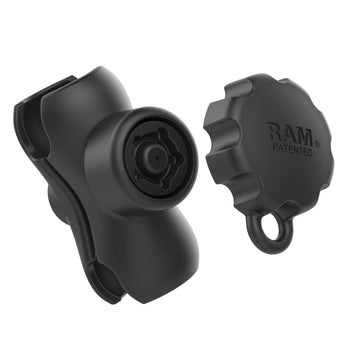

RAM® Double Socket Arm with RAM® Pin-Lock™ 5-Pin Security Knob - C Size RAM-201-BS-KEY5U
Ball Icon C SIZE
Arm Icon SHORT ARM
629 kr
RAM® Drill-Down Dashboard Ball Base with Backing Plate - C Size RAM-202-225-2U
Ball Icon C SIZE
Arm Icon ARM
509 kr
GDS® Modular 10-30V Hardwire Charger with Male USB Type-C RAM-GDS-CHARGE-V7CU
859 kr

Galaxy Tab A7 Lite 8.7" (SM-T220 & SM-T225) with IntelliSkin® Next Gen
