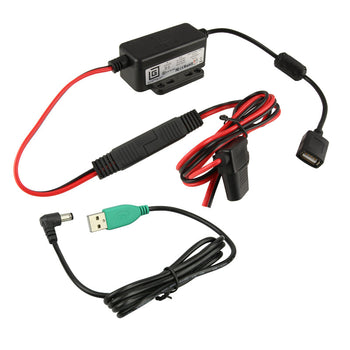

GDS® Modular 10-30V Hardwire Charger with USB-A to DC Cable
Part#:RAM-GDS-CHARGE-M55-V7B1U UPC:793442100970
749 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
The GDS® Modular Hardwire Charger with DC cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Always Protected. Always Connected.®
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

DC Plug
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meter
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

0.193 kg
Additional Information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.

Consists of

GDS® Modular 10-30V Hardwire Charger with Female USB Type A Connector RAM-GDS-CHARGE-V7B1U
639 kr
GDS® Genuine USB Type A with DC Cable RAM-GDS-CAB-USBA-DC-1U
99 kr
