GDS® Modular 10-30V Hardwire Charger with Type-C 2.0 Cable
Part#:RAM-GDS-CHARGE-USBC-V7B1-1U UPC:793442024269
749 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Hardwire charger features USB Type-A female connector

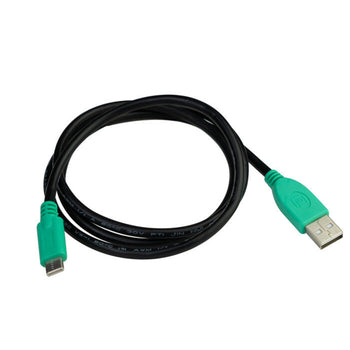

  • Comes with GDS® Genuine USB Type-C 2.0 Cable featuring USB Type-A male connection and USB Type-C male connection
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

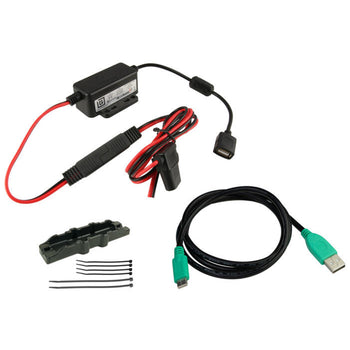

The GDS® Modular 10-30V Hardwire Charger with Type-C 2.0 Cable (RAM-GDS-CHARGE-USBC-V7B1-1U) connects to a power source and provides power to any GDS® vehicle solution. When it comes time to upgrade, the quick disconnect feature enables you to avoid any rewiring by unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.®
hardware included

(1) USB Type-C to Type-A 2.0 Cable
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

USB Type-C
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meter
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

0.231 kg
Additional information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
