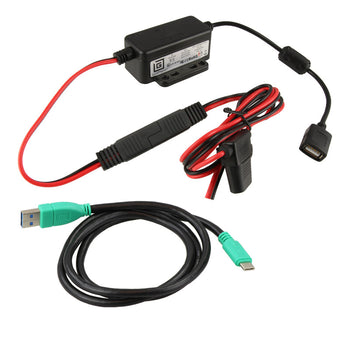

GDS® Modular 10-30V Hardwire Charger with Type-C Cable
Part#:RAM-GDS-CHARGE-USBC-V7B1U UPC:793442110672
1 159 kr
The GDS® Modular Hardwire Charger with USB Type-C cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature, easily connect any USB Type-A charging cable. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less. Always Protected. Always Connected.®
hardware included

(1) USB Type-C to Type-A Cable

packaging type

Poly Bag

input voltage

10-30VDC

output voltage

5-9VDC*

output current

2.5A max

input connector

USB Type-C

input cable length

1.2 Meters including 2 Pole Flat Marine Connector

output cable length

.2 Meter

operating temperature

-10°C to +70°C

storage temperature

-40°C to +70°C

regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC

certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1

Warranty

3 year warranty

Weight

0.195 kg

Additional Information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
