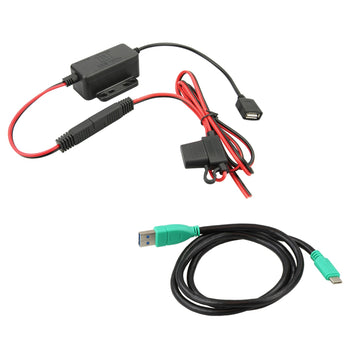

GDS® Modular 30-64V Hardwire Charger with Type-C Cable
Part#:RAM-GDS-CHARGE-USBC-V8BU UPC:793442936289
789 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Hardwire charger includes USB Type-A female connector and 1m long USB Type C extension cord 30V-64V input range, 5V output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with Female USB Type-A Connector is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature you can avoid rewiring with it comes to to upgrade by simply unplugging the SAE connector and attaching the new charger components. Compatible with any 5V device with a 30V-64V input range. Includes 1 meter long USB Type-C extension cord. Always Protected. Always Connected.®
hardware included

(1) USB Type-C to Type-A Cable
packaging type

Poly Bag
input voltage

30-64VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

USB Type-C
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

0.209 kg
Additional information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.

To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
