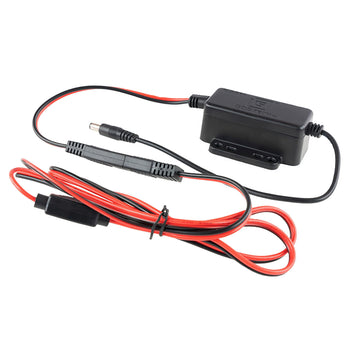

GDS® 28-60VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm
Part#:RAM-GDS-CHARGE-V15U UPC:793442224669
679 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Hardwire charger includes male 5.5mm barrel connector 28-60VDC input range, 16VDC output
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM® or GDS® DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 28-60VDC and the 16VDC makes it ideal for a variety of applications. Always Protected. Always Connected.®
packaging type

Poly Bag
input voltage

28-60VDC
output voltage

16VDC
output current

3.5A max
input connector

Male 5.5mm OD x 2.5mm ID Barrel Connector
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

RCM Certification
Warranty

3 year warranty
Weight

0.136 kg
Additional information
To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
