GDS® Modular 30-60V Power Delivery (25W) Male USB-C Hardwire Charger
Part#:RAM-GDS-CHARGE-V22CU UPC:793442033230
1 039 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Hardwire charger includes USB Type-C male connection with input of 30-60VDC and output of 5-12VDC
  • Supports Power Delivery
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

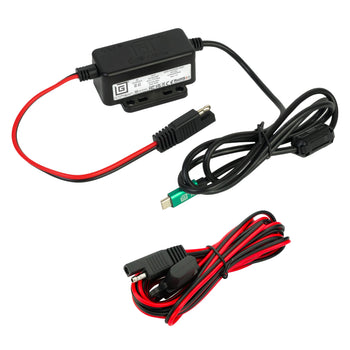

The GDS® Modular 30-60V Power Delivery (25W) Male USB-C Hardwire Charger (RAM-GDS-CHARGE-V22CU) is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 12V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®
packaging type

Poly Bag
input voltage

30-60VDC
output voltage

12VDC
power output

25W
output current

2.5A max
input connector

Bare Wire
input cable length

.2 Meters
output connector

USB Type-C Male
output cable length

1 Meter
operating temperature

-20°C to +70°C
storage temperature

-40°C to +85°C
regulatory

Over Voltage Protection
Over Current Protection
Short Circuit Protection
SAE J-1113-5a Load Dump (Transient Voltage)
WEEE Compliance
RoHS Compliance
certifications

FCC, CSA, CE, UKCA, RCM, e-Mark
Warranty

3 year warranty
Additional information
To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
