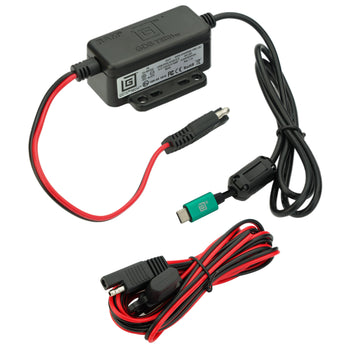

GDS® Modular 10-30V Power Delivery Hardwire Charger with Male USB Type-C
Part#:RAM-GDS-CHARGE-V3C-2U UPC:793442015892
2 079 kr
  • Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5-15VDC
  • Supports Power Delivery
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
The GDS® Modular Hardwire Charger is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Charger delivers up to 15V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery. Always Protected. Always Connected.®
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-15VDC
output current

3A max
input connector

Bare Wire
input cable length

2.5 Meters
output connector

USB Type-C Male
output cable length

1 Meter
operating temperature

-20°C to +70°C
storage temperature

-40°C to +85°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
certifications

CE Certification
RCM Certification
FCC Certification
UL 62368-1 Certificaton
Warranty

3 year warranty
Weight

0.218 kg
