GDS® Uni-Conn™ Powered Snap-In Dock with PoE Adapter
Part#:RAM-GDS-DOCK-U3EU UPC:793442025587
4 179 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in the IntelliSkin® Thin-Case™ with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • Backed by a 3-year warranty

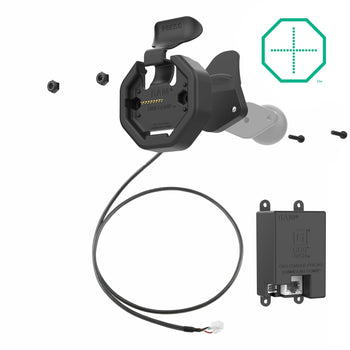

The GDS® Uni-Conn™ Powered Snap-In Dock with PoE Adapter(RAM-GDS-DOCK-U3EU) is a versatile snap-in docking solution for devices enclosed in an IntelliSkin® Thin-Case™ with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included

(1) Lever Stop
(1) RAM® PoE to PD Charging Module
(2) #8-32 x 1.125" Machine Screws
(2) #8-32 Nyloc Nuts
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.67A
power output

20W Max
input connector

JST Connector
input cable length

800mm
Warranty

3 year warranty
Weight

0.225 kg
Additional information
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
