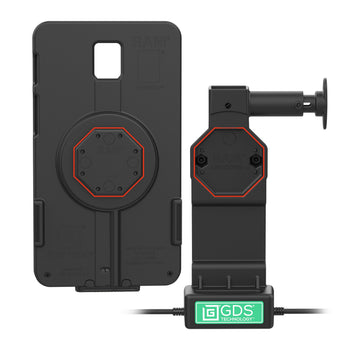

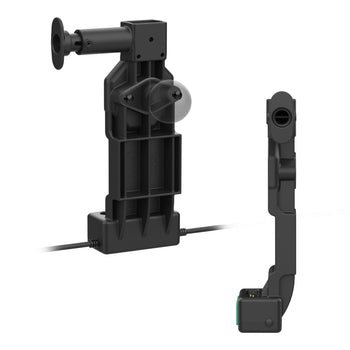

GDS® Uni-Conn™ Dock + USB-A & DB9 with Release Button
Part#:RAM-GDS-DOCK-U4CP-DBUSBAU UPC:793442037917
3 419 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

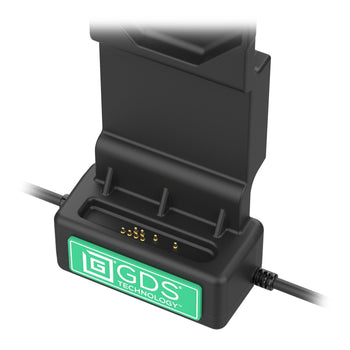

  • Dock features GDS® Technology™ for charging capabilities via pogo pin connectors uses USB-C female cable to connect to power
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed RAM® Mounts Compatible™

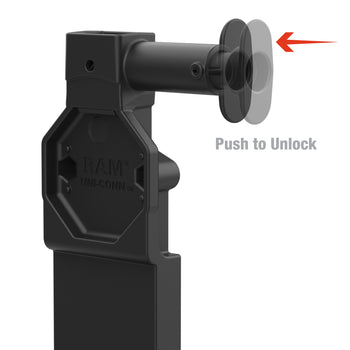

  • Uni-Conn™ dock features a quick-release button for easy device insertion and removal

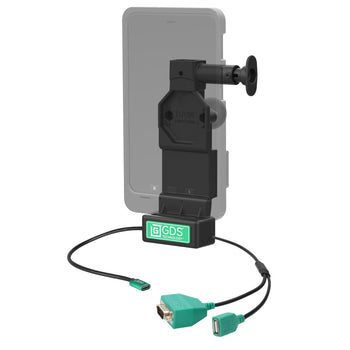

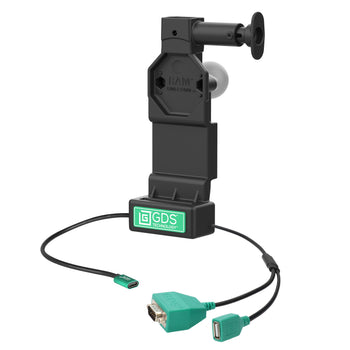

  • Power is delivered via a USB-C connector data connects to dual USB-A and DB9 connectors
  • Backed by a 3-year warranty
The GDS® Uni-Conn™ Dock + USB-A & DB9 with Release Button (RAM-GDS-DOCK-U4CP-DBUSBAU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Peripheral support is provided by the built-in USB Type-A and DB9 cable. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the quick-release button frees the device. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-Conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

(2) #8-32 x 5/8" Screws
(2) #8-32 Nyloc Nuts
(1) Cable Clamp
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V @ 3A
9V @ 2A
9V @ 2.22A
12V @ 2A
input connector

USB Type-C
input cable length

215mm
output connector

(1) USB Type A Female
(1) DB9 Male
output cable length

270mm
Warranty

3 year warranty
Additional information
GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
