GDS® Uni-Conn™ Powered PoE Dock with Release Button
Part#:RAM-GDS-DOCK-U5EU UPC:793442031762
5 339 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Quick-release dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in IntelliSkin® with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • RAM® Compatible™ complete your solution with a diamond ball adapter, arm, and base of choice
  • Backed by a 3-year warranty

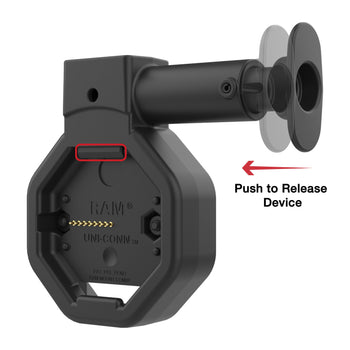

The GDS® Uni-Conn™ Powered PoE Dock with Release Button (RAM-GDS-DOCK-U5EU) is a versatile, quick-release docking solution for devices enclosed in an IntelliSkin® with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the JST connector and PoE Adapter. It features an easy docking and undocking process simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included

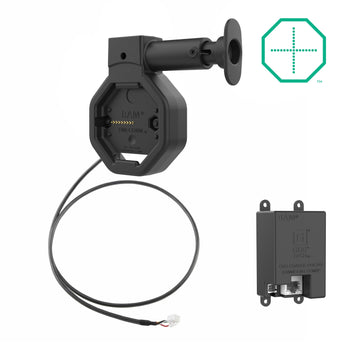

(1) RAM® PoE to PD Charging Module
(2) #8-32 x 7/8" Machine Screws
(2) #8-32 Nylock Nuts
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

USB PD 3.0:
5V @ 3A
9V @ 2.2A
12V @ 1.67A
power output

20W Max
input connector

JST Connector
input cable length

800mm
Warranty

3 year warranty
Additional information
GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
