GDS® Uni-Conn™ Non-Locking Spring Loaded Powered Dock
Part#:RAM-GDS-DOCK-V12-U1CPU UPC:793442020131
1 669 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions

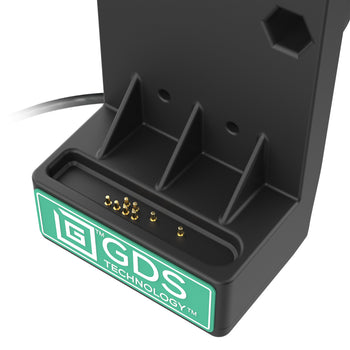

  • Spring-loaded dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • USB Type-C Female connector provides high-speed charging to the dock
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty

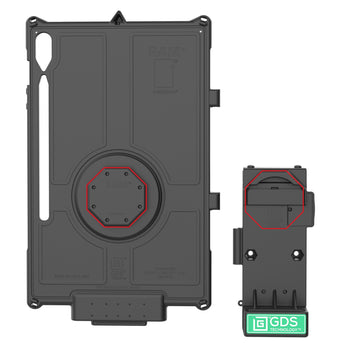

The GDS® Uni-Conn™ Spring Loaded Powered Dock (RAM-GDS-DOCK-V12-U1CPU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It features an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you are able to place the bottom of the device on the D-shaped bottom cup connection point. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

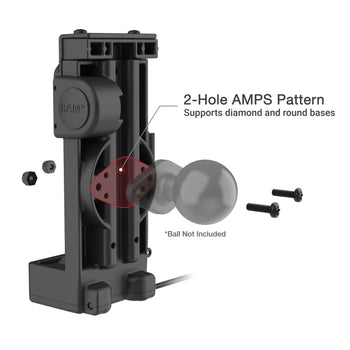

hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

USB Type-C
input cable length

1 Meter
Warranty

3 year warranty
Weight

0.315 kg
Additional Information
GDS® Uni-Conn™ Spring-Loaded docks are not recommended for high vibration or open cockpit applications, such as forklifts or semi-trucks. Consider the GDS® Uni-Conn™ Powered Dock for high vibration applications or the GDS® Tough-Dock™ for extreme applications.
