GDS® Vehicle Dock for Zebra EM45 with USB-C IntelliSkin®
Part#:RAM-GDS-DOCK-V15-ZE37-CU UPC:793442037962
2 089 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded, latching powered dock for IntelliSkin® for Zebra EM45 with External USB-C Port

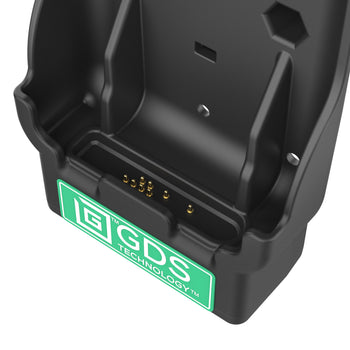

  • Power delivered through integrated pogo pin technology via USB-C connector
  • Compatible with RAM® diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

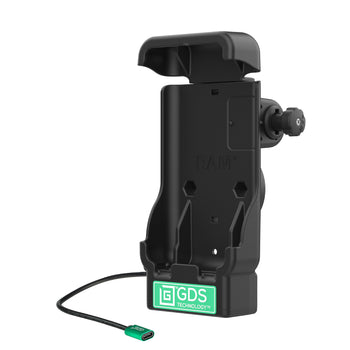

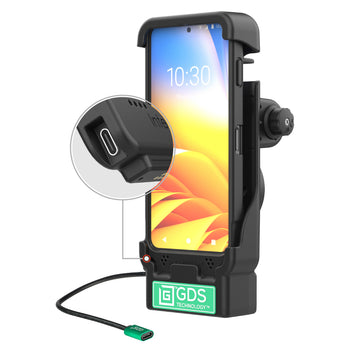

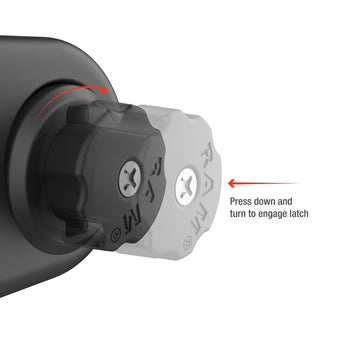

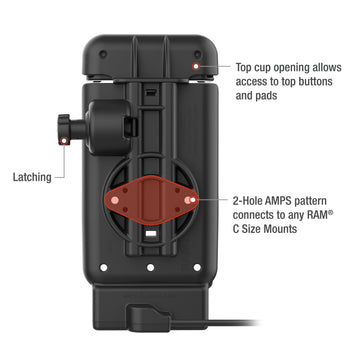

The GDS® Vehicle Dock for Zebra EM45 with USB-C IntelliSkin® (RAM-GDS-DOCK-V15-ZE37-CU) is a rugged dock that will meet and exceed the demands of modern workflows, featuring integrated pogo pins that perfectly align with IntelliSkin® for Zebra EM45 with External USB-C Port. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device. The back cavity of the dock accommodates ergonomic accessories secured to the back of the device. An integrated cutout on the top allows for the ability to access buttons, ports, or scanners without removing the device from the dock. The included latch feature secures your device in place when docked simply push down and turn the latch to engage. Complete the solution by building your mount—this holder is RAM® Compatible™ featuring a 2-hole AMPS pattern for adding a diamond ball adapter. Always Protected. Always Connected.®
hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nyloc Nuts
(1) Cable Clamp Kit
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 12V @ 3A
power output

15W
input connector

USB Type-C
input cable length

380mm
Warranty

3 year warranty
