GDS® Power + Dual USB Dock for Zebra ET4x 8" with IntelliSkin®
Part#:RAM-GDS-DOCK-ZE20PD2U UPC:793442926198 Patented & Pats. Pend.
3 019 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Powered dock featuring GDS® Technology™ and RAM® EZ-Roll'r™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and and dual USB Type A connector for adding up to 2 peripherals MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery tablet scanning works while tablet is docked

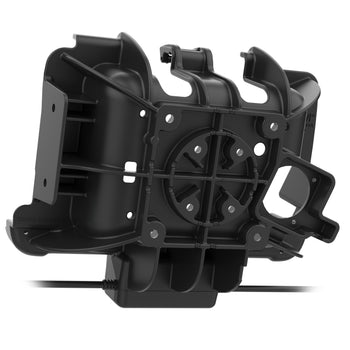

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability

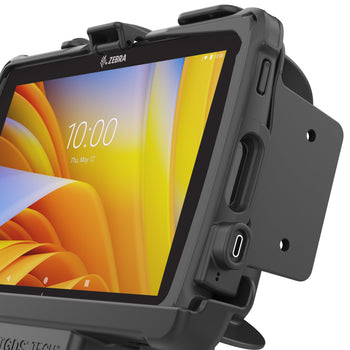

  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Temp-Right™ Dock Heating Module for Zebra ET4x
RAM® Temp-Right™ Dock Heating Module fo...
RAM® Vent-Temp™ with Back Dock Connection for Round Vents
RAM® Vent-Temp™ with Back Dock Connecti...
RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Back Dock Connecti...
RAM® Vent-Temp™ with Front Dock Connection for Round Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Front Dock Connect...

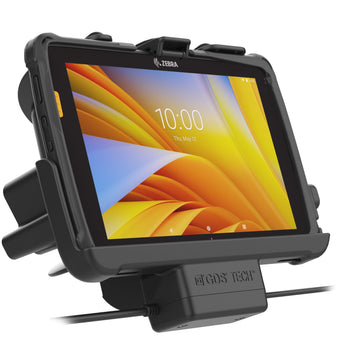

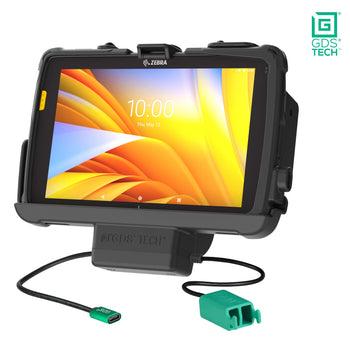

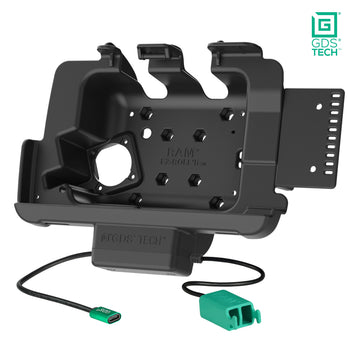

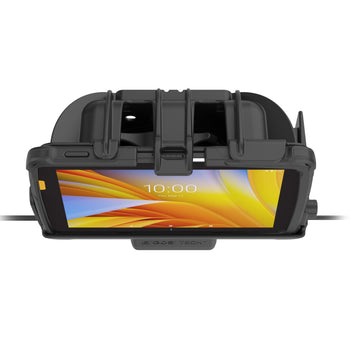

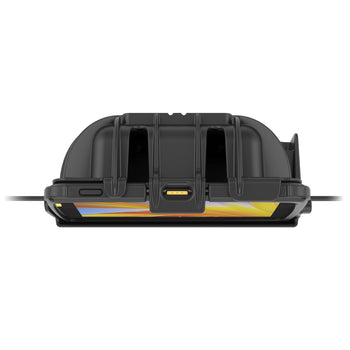

Featuring GDS® Technology™ for data and charging capabilities, the GDS® Vehicle Dock (RAM-GDS-DOCK-ZE20PD2U) works with the Zebra ET40 and ET45 8" enterprise tablets with an IntelliSkin® protective sleeve. This dock allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®
hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nyloc Nuts
(2) Small Cable Ties
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 20V @ 3A
power output

60W
input connector

USB Type-C
input cable length

215mm
output connector

(2) USB 2.0 Type A
output cable length

215mm
peripheral output

900mA (per port)
transfer speed

12Mbps
certifications

RoHS
WEEE
FCC
CE
ICES
UKCA
Warranty

3 year warranty
Weight

0.612 kg
Additional information
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.
