GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE + Data
Part#:RAM-GDS-DOCKL-D14-U4E-2A UPC:793442035616
7 659 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

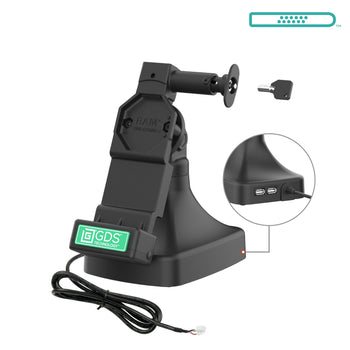

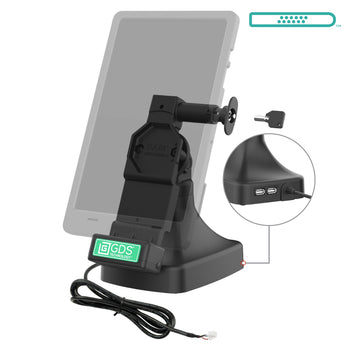

  • Key-locking, free-standing, powered Kiosk dock for devices enclosed in an IntelliSkin® with D-shaped bottom connection and GDS® Uni-Conn™ Adapter
  • GDS® Uni-Conn™ dock pogo pins provide Power over Ethernet (PoE) via RJ45 connector

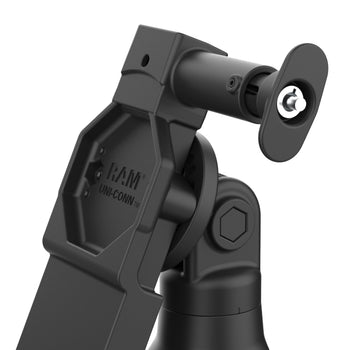

  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees
  • Weighted base with rubber pads prevents kiosk from moving
  • Backed by a 3-year warranty
The GDS® Uni-Conn™ Locking Tilt & Swivel Dock with PoE + Data (RAM-GDS-DOCKL-D14-U4E-2A) is a free-standing, powered dock for devices enclosed in an IntelliSkin® Next Gen, IntelliSkin® Hard Case, or standard IntelliSkin® Thin-Case™ with a GDS® Uni-Conn™ adapter. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Power over Ethernet (PoE) is provided to the pogo pins integrated into the GDS® Uni-Conn™ dock via RJ45 connection while the two USB-A ports on the back support up to two input devices like keyboard, mouse, scanner gun, and more. This dock features a weighted base and rubber pads that offer theft deterrence and prevent it from sliding around on surfaces. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included

(2) Keys
(1) RAM® PoE to PD Charging Module
product dimensions

Height from Base to Tilt Bolt: 5.52"
Base Width: 5.13"
Base Depth: 6.63"
materials

High Strength Composite
packaging type

Box
power specifications

Required Input: POE+ (802.3at) or greater
output voltage

PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A
power output

20W Max
input connector

JST Male Connector
input cable length

1.5 Meters
transfer speed

10/100Mbps
ports

(2) USB-A 2.0 up to 480Mbps (5V @ 0.5A to a peripheral per port)
Warranty

3 year warranty
