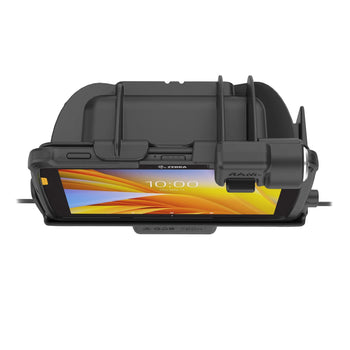

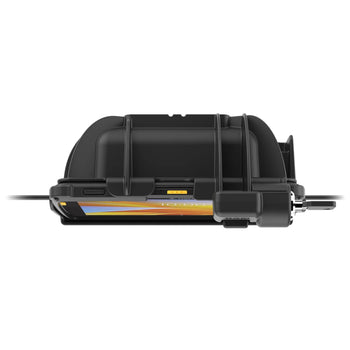

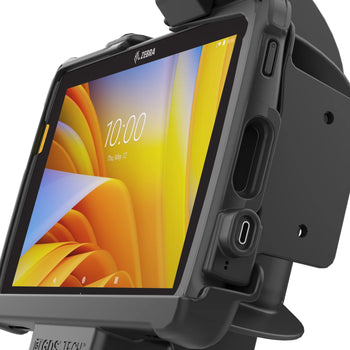

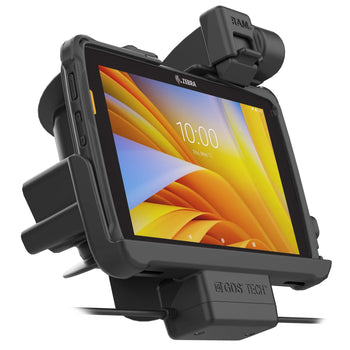

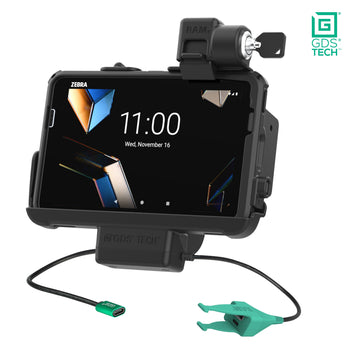

Locking GDS® Dock + USB-A & RJ45 for Zebra ET401 8" with IntelliSkin®
Part#:RAM-GDS-DOCKL-ZE20-RJ45AU UPC:793442022746
Availability Only a few left
4 489 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
IntelliSkin® Next Gen for Zebra ET401 8" Enterprise Tablet
Recommended add-on
IntelliSkin® Next Gen for Zebra ET401 8" Enterprise Tablet
1 449 kr
Details
RAM® Screen Protector for Zebra ET401 8"
Recommended add-on
RAM® Screen Protector for Zebra ET401 8"
399 kr
Details
  • Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET401, and ET40 & ET45 8" tablets with IntelliSkin® Next Gen protective sleeve via USB Type-C for power and dual USB Type A & RJ45 (ethernet) connector MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery tablet scanning works while tablet is docked

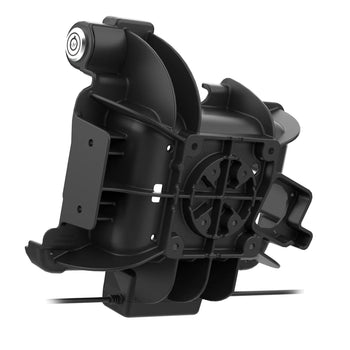

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability

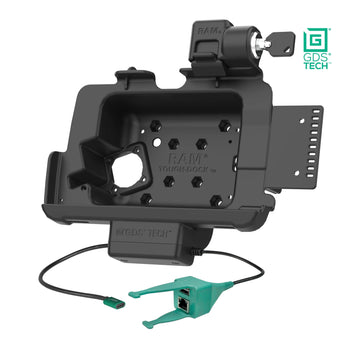

  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Temp-Right™ Dock Heating Module for Zebra ET4x
RAM® Temp-Right™ Dock Heating Module fo...
RAM® Vent-Temp™ with Back Dock Connection for Round Vents
RAM® Vent-Temp™ with Back Dock Connecti...
RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Back Dock Connecti...
RAM® Vent-Temp™ with Front Dock Connection for Round Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Front Dock Connect...

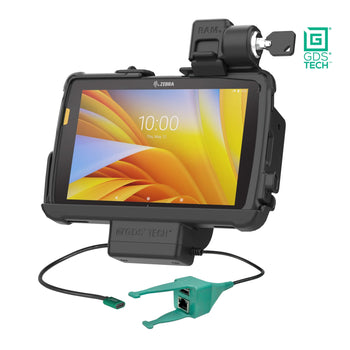

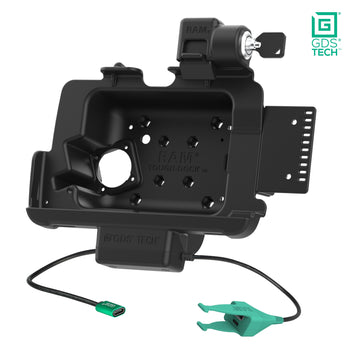

The Locking GDS® Power + Dual USB-A & RJ45 Dock (RAM-GDS-DOCKL-ZE20-RJ45AU) features GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock works with the Zebra ET401, ET40, and ET45 8" enterprise tablets with an IntelliSkin® protective sleeve. This dock allows you to connect one peripheral and maintain a secure internet connection while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in dual USB Type-A and RJ45 (ethernet) cord. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®
hardware included

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nyloc Nuts
(2) Small Cable Ties
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
output voltage

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
power output

15W
input connector

USB Type-C (Power In)
input cable length

215mm
output connector

(1) USB Type-A & (1) RJ45 Female
output cable length

215mm
peripheral output

900mA
Warranty

3 year warranty
Weight

0.765 kg
Additional information
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.
