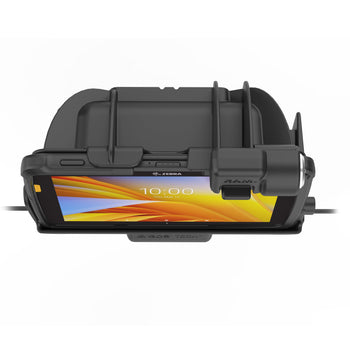

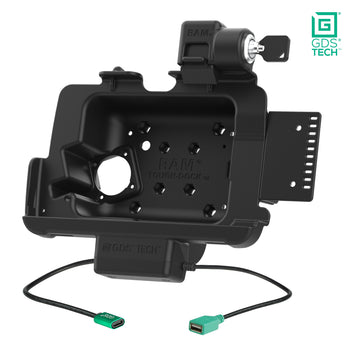

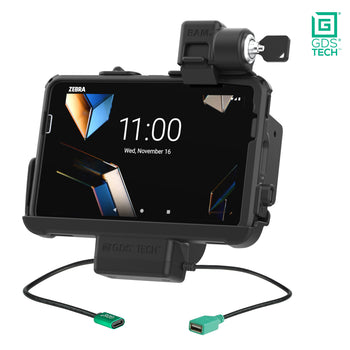

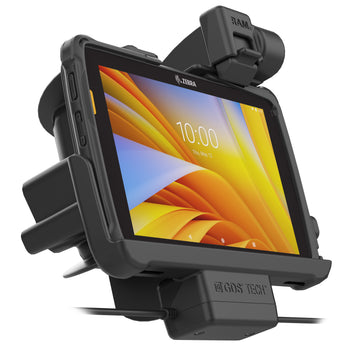

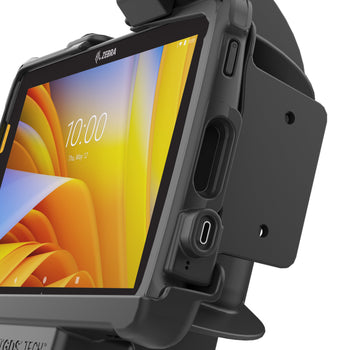

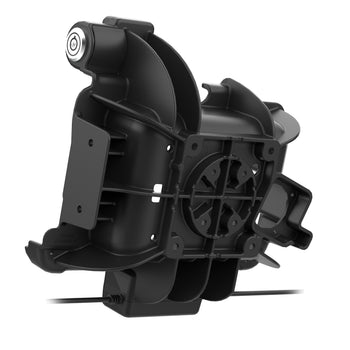

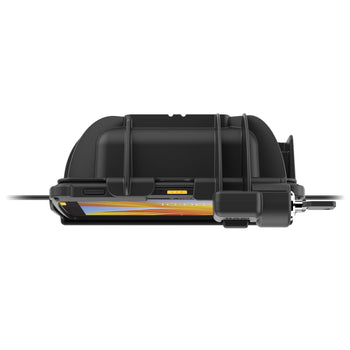

Locking GDS® Power + Data Dock for Zebra ET4x 8" with IntelliSkin®
Part#:RAM-GDS-DOCKL-ZE20PDU UPC:793442226090 Patented & Pats. Pend.
4 489 kr
  • Locking powered dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device while docked Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Featuring GDS® Technology™ for data and charging capabilities and a key lock for theft deterrence, the GDS® Vehicle Dock for Zebra ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's USB Type-C connector, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone or other handheld device. Always Protected. Always Connected.®
hardware included

(2) Keys
(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 20V @ 3A

power output

60W

input connector

USB Type-C

input cable length

215mm

output connector

USB 2.0 Type A

output cable length

215mm

peripheral output

500mAh

transfer speed

12Mbps

certifications

RoHS
WEEE
CE
UKCA

Warranty

3 year warranty

Weight

0.726 kg

Additional Information
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE20C-NG for compatible IntelliSkin®.

ET40 8" Tablet with IntelliSkin® Next Gen

ET45 8" Tablet with IntelliSkin® Next Gen
