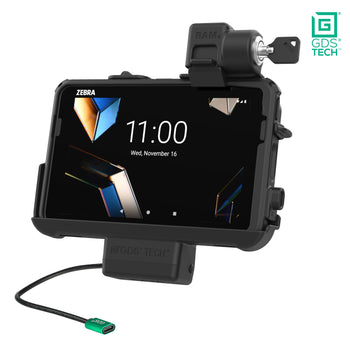

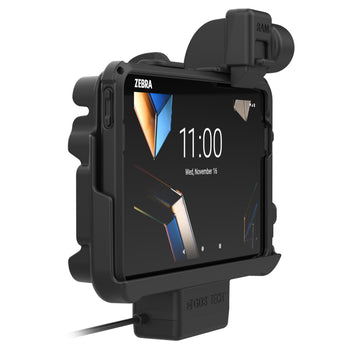

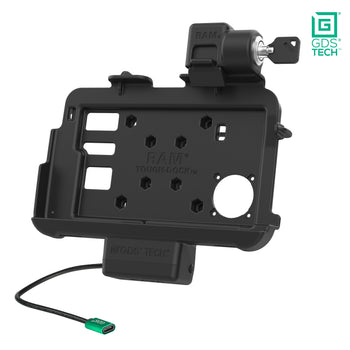

Locking GDS® Thin-Dock™ for Zebra ET401 & ET4x 8" with IntelliSkin®
Part#:RAM-GDS-DOCKL-ZE46PU UPC:793442032301
2 669 kr
Incl. VAT
  • Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®
  • Slim-profile design at 2.44" depth with metal reinforcement plate

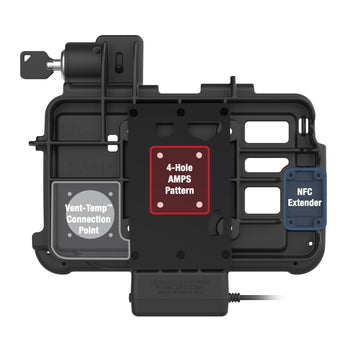

  • Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Compatible with RAM® Vent-Temp™ and NFC Extender
  • Backed by a 3-year warranty
The Locking GDS® Thin-Dock™ for Zebra ET401 & ET4x 8" with IntelliSkin® (RAM-GDS-DOCKL-ZE46PU) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 8" enterprise tablets when used with an IntelliSkin® protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock™ keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM® C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM® Vent-Temp™, a temperature control accessory, and the RAM® NFC Extender. Always Protected. Always Connected.®
hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 15V @ 3A

power output

45W

input connector

USB Type-C

input cable length

215mm

certifications

RoHS
WEEE
CE
UKCA

Warranty

3 year warranty

Weight

0.0 kg

ET401 8" Tablet with IntelliSkin® Next Gen

ET40 8" Tablet with IntelliSkin® Next Gen

ET45 8" Tablet with IntelliSkin® Next Gen
