GDS® Power + Dual USB Dock with Latch for Zebra ET4x 10" Tablet
GDS® Power + Dual USB Dock with Latch for Zebra ET4x 10" Tablet
4 359 kr
- Powered latch dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and dual USB Type A connector for adding up to 2 peripherals MIL-STD 810G Shock and Vibration tested
- When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked

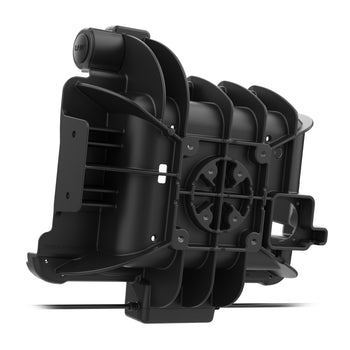

- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
- Backed by a 3-year warranty

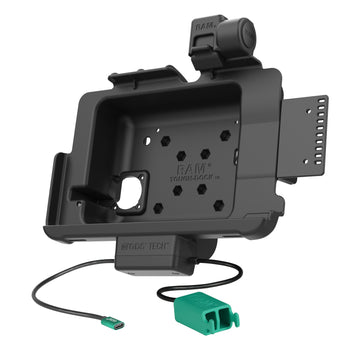

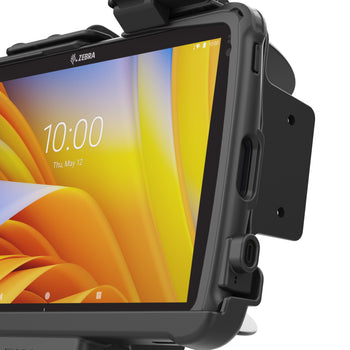

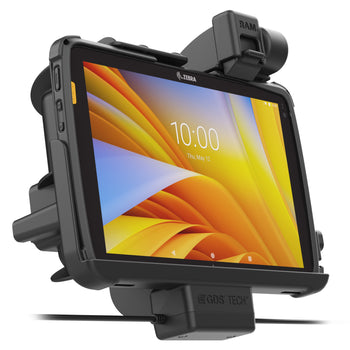

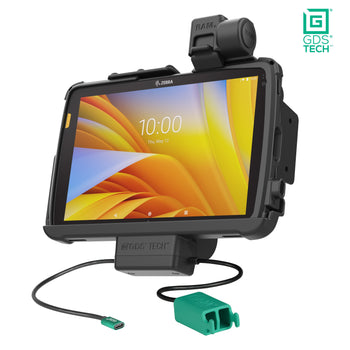

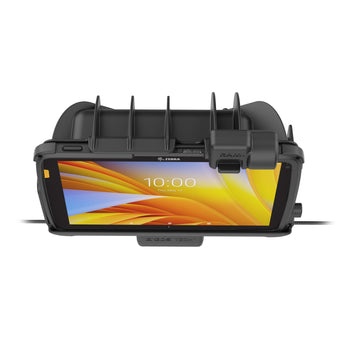

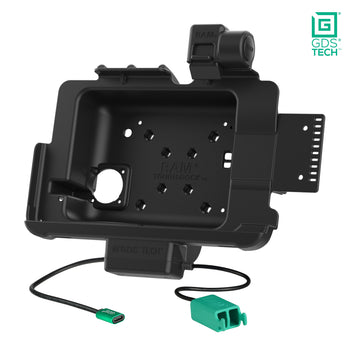

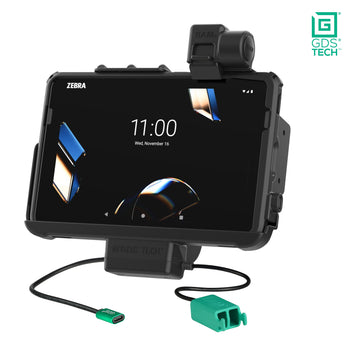

For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE21PD2U) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 10" is docked. A dual USB Type-A pigtail connector is provided for adding two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®
hardware included |
(1) Side bracket for accessory mounting |
hole pattern |
75 x 75mm VESA |
materials |
High strength composite |
packaging type |
Poly Bag |
output voltage |
5V - 20V @ 3A |
power output |
60W |
input connector |
USB Type-C |
input cable length |
215mm |
output connector |
(2) USB 2.0 Type A |
output cable length |
215mm |
peripheral output |
900mAh (per port) |
transfer speed |
12Mbps |
certifications |
RoHS |
Warranty |
3 year warranty |
Weight |
0.766 kg |
Additional Information |
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
|
ET40 10" Tablet with Rugged Frame
ET45 10" Tablet with Rugged Frame
