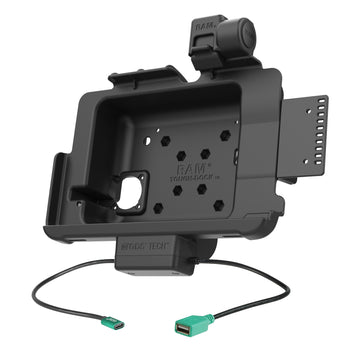

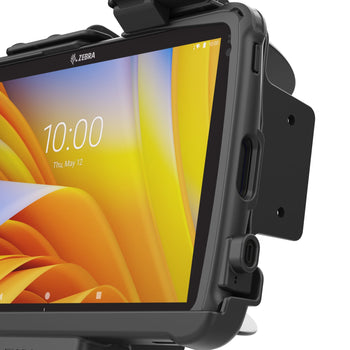

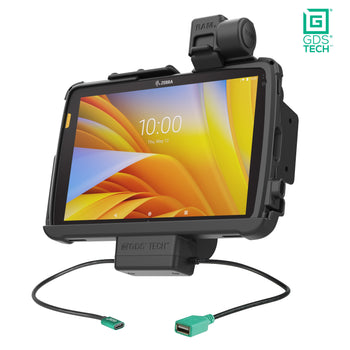

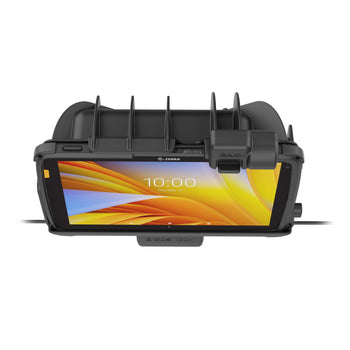

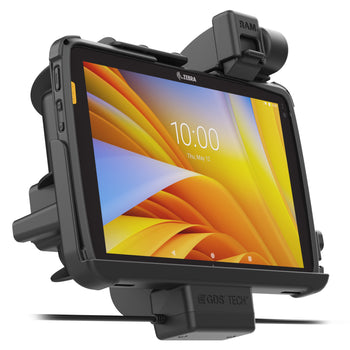

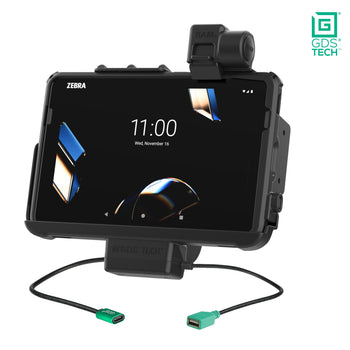

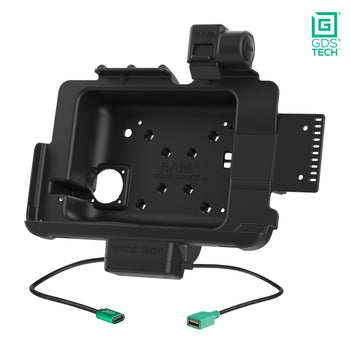

GDS® Power + Data Dock with Latch for Zebra ET4x 10" Tablet
Part#:RAM-GDS-DOCKNLL-ZE21PDU UPC:793442017100
4 039 kr
  • Powered latch dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET40 & ET45 10" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral MIL-STD 810G Shock and Vibration tested
  • When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked

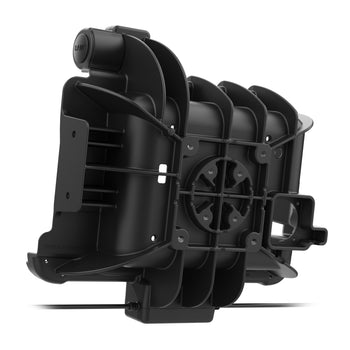

  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
For frequent docking and undocking of the Zebra ET40 & ET45 10" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE21PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 10" is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®
hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nylock Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nylock Nuts
(2) Small Cable Ties

hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

output voltage

5V - 20V @ 3A

power output

60W

input connector

USB Type-C

input cable length

215mm

output connector

USB 2.0 Type A

output cable length

215mm

peripheral output

500mAh

transfer speed

12Mbps

certifications

RoHS
WEEE
CE
UKCA

Warranty

3 year warranty

Weight

1.102 kg

Additional Information
IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.

ET40 10" Tablet with Rugged Frame

ET45 10" Tablet with Rugged Frame
